It is an ideal servo motor for micro:bit GO bundle projects paired with our I/O adapter to bring both micro:bit control signals and direct battery current right to a breadboard. A 3-pin single-row header, available separately, will come in handy for connecting this servo to a breadboard.

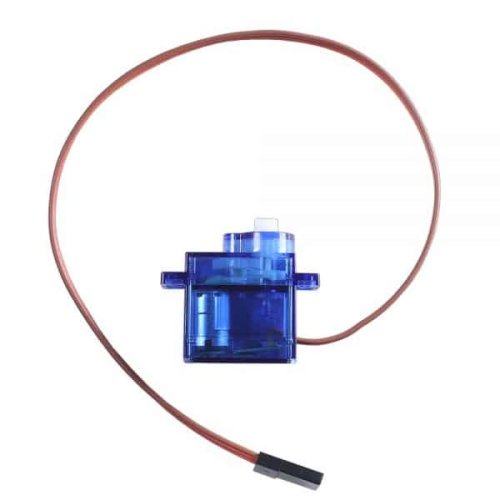

Control this servo with PWM (pulse width modulation) signals. Pulses in the 700-1500 µs range turn it clockwise; pulses in the 1500-2300 µs range turn it counterclockwise, 1500 µs will make it stop. The Wheel/Tire for 3V Micro CR Servo (FT90R) presses right on to this servo's spline, just secure it with the included screw.

Features:

Standard:
- Operates at just 3V, ideal for two 1.5V batteries
- Easy to control with simple PWM (pulse-width modulation) signals
- Rotates to and holds any position in a 180° range

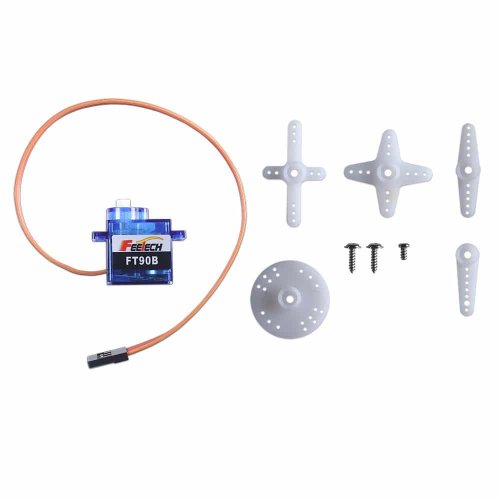

- Set of servo horns is included
Countinuous Rotation:
- Operates at just 3V, ideal for two 1.5V batteries
- Easy to control with simple PWM (pulse-width modulation) signals
- Rotates continuously clockwise & counterclockwise
- Set of servo horns is included
- Accepts the Wheel/Tire for FT90R Mini CR Servo

Applications:

Standard:
- Animating a mechanical character
- Raising or lowering a signal flag
- Opening or closing an access hatch
Continuous Rotation:
- Animating mechanical props
- Tiny home-made robots
