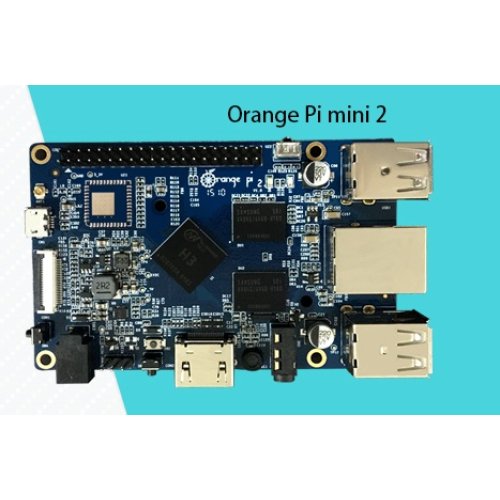

• Orange Pi Mini 2 - Single board Computer

Orange Pi Mini 2 an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM



Features and Specifications:

Hardware specification

CPU

H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU

·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / MMC card slot

Onboard Network

10/100M Ethernet RJ45

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Integrated CVBS

Supports simultaneous output of HDMI and CVBS

Audio Output

3.5 mm Jack and HDMI

Power Source

DC input can supply power, but USB OTG input don’t supply power

USB 2.0 Ports

Four USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW4), Recovery Button(SW2)

UBoot Button(SW3)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+

GPIO(1x3) pin

UART, ground.

LED

Power led & Status led

Key

IR input,UBOOT,POWER

Supported OS

Android Ubuntu, Debian, Rasberry Pi Image

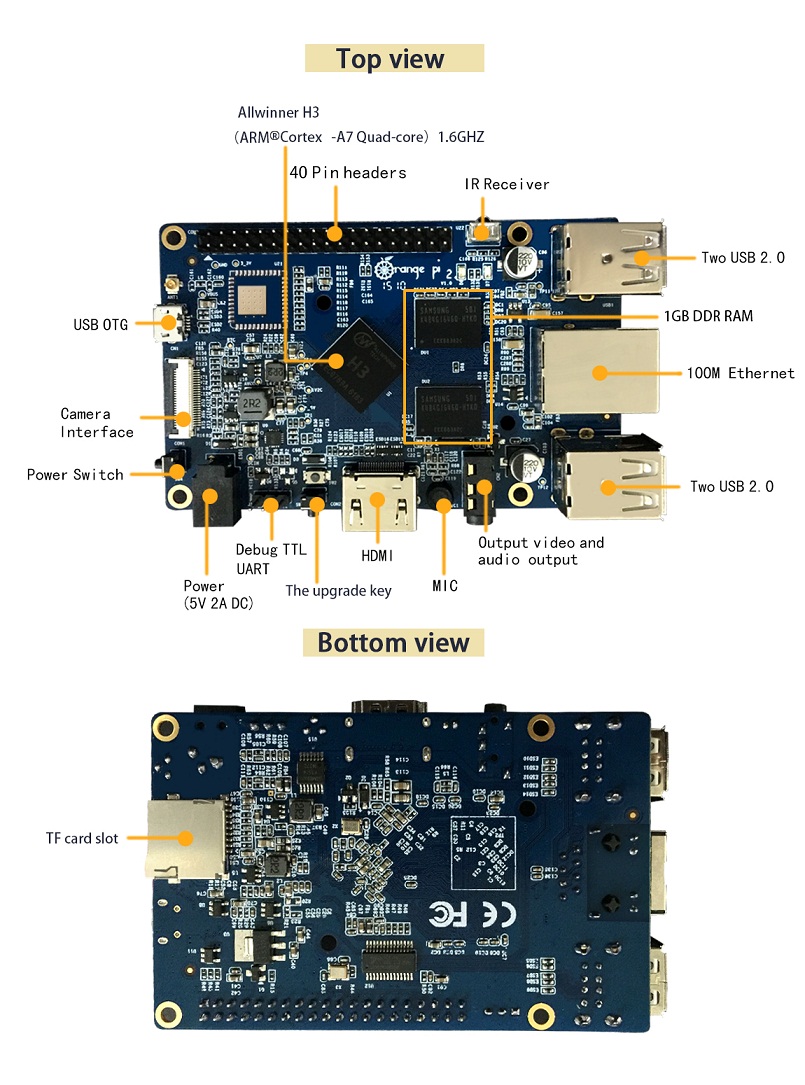

Interface definition

Product size

93 mm × 60mm

Weight

45g



Write a review

Please login or register to review

Orange Pi Mini 2 - Single board Computer

  • Brand: Orange Pi
  • Product Code:OPi-Orange-Pi-Mini-2-Board
  • Reward Points:33
  • Availability:Order now and get it in 25 days
  • रo 3,285.00

  • Ex Tax:रo 3,285.00
  • Price in reward points:3285
