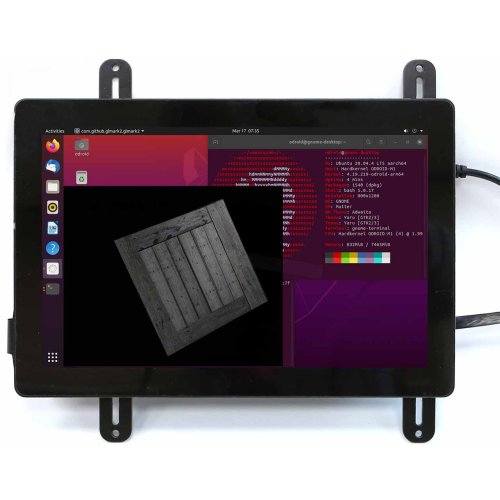

The four-lane MIPI-DSI port can be directly connected to a LCD panel. A 8inch 800×1280 wide viewing angle LCD and capacitive multi-touch screen is pre-assembled.

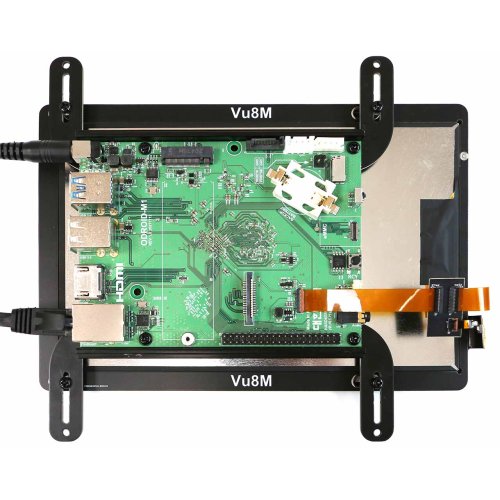

If you assemble the ODROID-M1 single board computer on the rear side of the Vu8M kit, you can easily implement a Human-Machine-Interface (HMI) device. The U bracket PCB is included to dock ODRMOD-M1 to Vu8M.

Specifications

• 8-inch TFT-LCD
• 800(H) x 3(RGB) x 1280(V) pixels hardware resolution
• Mechanical Dimensions : 198(W) x 133.0(H)
• Viewable screen size : 172.224 x 107.64 mm (active area)
• 5 finger capacitive touch input
• Power consumption : 2.4W ± 10% (100% duty cycle)

Assembly Guide

Link :  https://wiki.odroid.com/accessory/display/vu_series/vu8m#assembly_guide

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

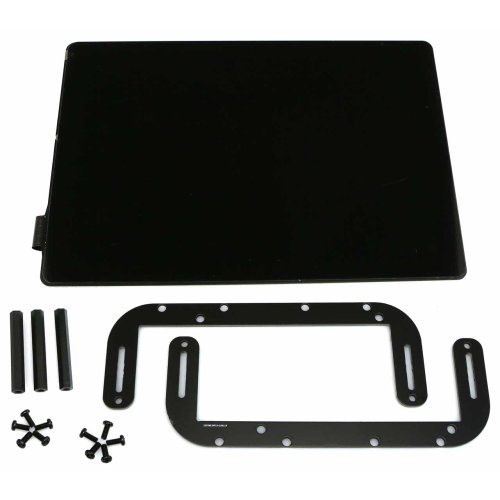

Package includes

• 1 x  Assembled 8inch TFT LCD + multi touch screen
• 3 x M3*40(black) support  (spare included)
• 11 x PM3.0 x 7(black) bolt (spare included)
• 2 x 60 mm FPCB cable
• 1 x  MIPI DSI converter board for M1
• 1 x  LCD bracket board for M1
• 2 x U form bracket board for M1
