Nordic Semiconductor nRF52 Development Kit is offered as a versatile single-board development kit for Bluetooth® Smart, ANT, and 2.4GHz proprietary applications using the nRF52832 SoC. The development kit provides a rapid prototyping and development solution for nRF52 Series SoCs.

Hardware-compatible with the Arduino Uno Revision 3 standard, the nRF52 Development Kit enables designers to use 3rd-party shields that conform to this standard. The kit supports the standard Nordic tool-chain software using Keil, IAR, and GCC. Program/debug options are available for Segger J-Link OB and external target boards.

The layout of board gives access to all I/O and interfaces via connectors. The board features four user-programmable LEDs and buttons, an integrated PCB antenna, connector for RF measurements, pins for power consumption measurements, a coin-cell battery holder, and a USB. Designers can connect an NFC antenna to enable NFC tag functionality.

Features

• Segger J-Link OB Program/Debug supported
• All I/O and interfaces available via connectors
• Arduino Uno Rev. 3 compatible connector for use with 3rd party shields
• Supports Bluetooth Smart, ANT and 2.4GHz proprietary development
• Kit supports nRF52832 development
• Rapid prototyping and development solution for nRF52 Series SoCs
• Support for Program/Debug of external target boards
• Integrated PCB antenna
• Connector for external NFC antenna
• Connector for RF measurements
• Pins for power consumption measurements
• Coin-cell battery holder
• 3.6v -1.7v, battery and USB, external

• Internet of Things (IoT) - Sensors and Hubs
• Wearables - Sensors and Hubs
• Appcessories - Sensors and Hubs
• Desktop peripherals
• Remote controls
• Sports & Medical
• Smartwatch
• Smart home sensors
• Toys
• Industrial sensors
• A4WP wireless charging control

• nRF52 board
• 2032 battery
• NFC antenna

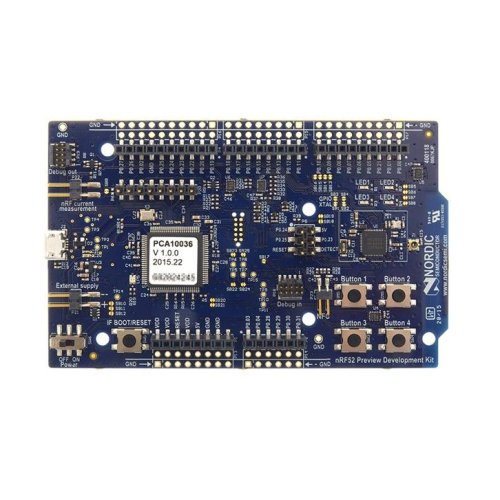

Board Layout

Datasheet
