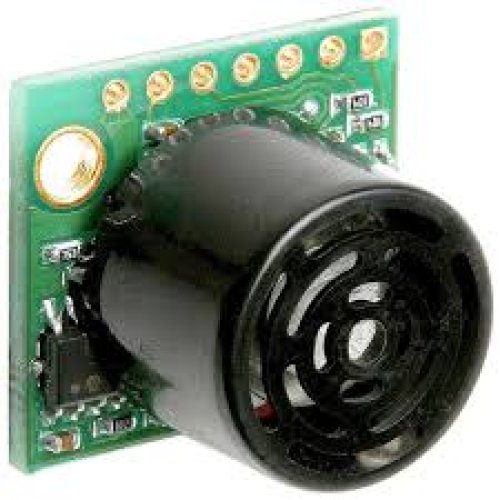

• Ultrasonic Sensor MB1004-000

These ultrasonic proximity sensors detect objects in a calibrated detection zone. The LV‑ProxSonar‑EZ sensors report when an object (such as a person) enters the detection zone. The target is released after leaving the LV‑ProxSonar‑EZ detection zone.

The LV‑ProxSonar‑EZ0 has a detection zone of ~7 feet and will allow for 6+ simultaneous sensors.

Features:

  • Resolution of 1 inch
  • ~2.5 second target acquire time*
  • ~1.5 second target release time*
  • Automatic multi-sensor operation
  • People sensor
  • Maximum reported range of 254 inches (645 cm)
  • ~7 foot proximity detection zone (84 inches or 213 cm)
  • Run up to 6+ sensors in the same environment
  • Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from sensor outputs: Serial and Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Longest detection zone



DataSheet

Write a review

Please login or register to review

Ultrasonic Sensor MB1004-000

  • Brand: Maxbotix
  • Product Code:MaxBotix-Ultrasonic-Sensor-MB1004-Maxbotix
  • Reward Points:22
  • Availability:Order now and get it in 15 days
  • रo 2,177.00
  • रo 1,935.00

  • Ex Tax:रo 1,935.00
  • Price in reward points:2177

  • 7 or more रo 2,159.00
  • 15 or more रo 2,142.00
  • 35 or more रo 2,124.00
  • 70 or more रo 2,107.00
