3-3/4 Digits, Backlit LCD, Data Hold, 30mm Jaw Size, AC/DC Voltage, AC Current up to 1000A, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode and Continuity Test Facility. 500V DC/AC Protection in all ranges.

Specifications:

• Auto Power Off
• Data Hold Facility
• Double molded body with rubber coating
• Clamp Jaw Size: 30mm
• Display : 3-3/4 Digital 3999 Counts Backlit LCD
• DC Voltage : 0 – 400m/4/40/400/600V.
• Accuracy : ±0.8%
• AC Voltage : 0 – 400m/4/40/400/600V.
• Accuracy : ±0.8%
• AC Current : 0 – 40/400/1000A.
• Accuracy : ±2.5%
• Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
• Accuracy : ±1.0%
• Temperature : -50°C to 1000°C / -58°F to 1832°F
• Accuracy : ±3.0%
• Frequency : 0 – 5/50/500/5K/50K/500K/5M/10MHz
• Accuracy : ±1.2%
• Capacitance : 0 – 40n/400n/4u/40u/100uF
• Accuracy : ±3.0%
• Duty Cycle : 0.5 – 99.0%
• Accuracy : ±1.2%
• Diode Test and Continuity Test
• Confirms to CE, IEC 61010, CAT-III 600V
• Overload Protection of 500V DC/AC RMS in Resistance, Temperature, Frequency, Duty Cycle, Capacitance, Diode and audible continuity test range

Additional Informations:

• Model DT-2250
• Brand Metravi

• Warranty One year against manufacturing defects

• Colour Black-Red
• Display Backlit LCD

• Auto Power Off Auto Power-off

• Data Hold Data Hold

• Jaw Dia 30mm

• Diode & Continuity Diode & Continuity test

• Duty Cycle Range 0.5% to 99%

• Low Battery Indication Low Battery Indication

• Overload Indication Overload Indication

• Sampling Time 2 times/sec

• Power Source Battery Operated

• Battery Type Alkaline

• Battery Size 9V

• No of Batteries 1

• DC Voltage Range 0 – 400mV / 4V / 40V / 400V / 600V

• AC Voltage Range 0 – 400mV / 4V / 40V / 400V / 600V

• AC Current Range Resistance Range 0 – 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ

• Capacitance Range 0–40nF/400nF/4uF/40uF/100uF

• Frequency Range 0–5Hz/50Hz/500Hz/5kHz/50kHz/500kHz/5MHz/10MHz

• AC or AC/DC AC

• DC Voltage Accuracy ±0.8%

• AC Voltage Accuracy ±0.8%

• AC Current Accuracy ±2.5%

• Resistance Accuracy ±1.0%

• Capacitance Accuracy ±3.0%

• Frequency Accuracy ±1.2%

• Certifications CAT-III 600V, CE, IEC 61010

Documentation:

• Wiki

Package Includes:

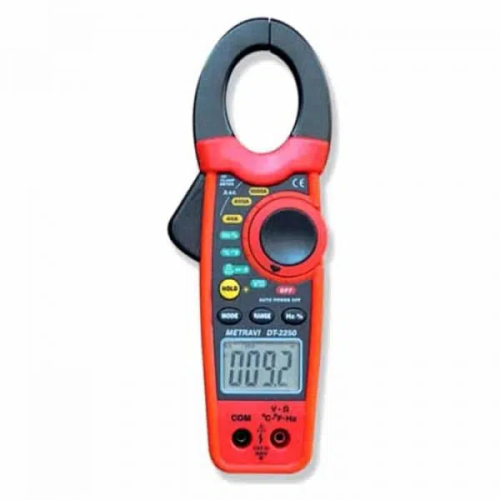

• 1 x Metravi DT-2250 Digital AC Clamp Meter
