3-1/2 Digits, Backlit LCD, Data Hold, Max Hold, 30mm Jaw Size, AC/DC Voltage, AC Current up to 1000A, Resistance, Diode and Continuity Test. 500V DC/AC Protection in all ranges.

Specifications:

• Auto Power Off
• Data Hold and Maximum Hold Facility
• Double molded body with rubber coating
• Clamp Jaw Size : 30mm
• Display : 3-1/2 Digital 1999 Counts Backlit LCD
• DC Voltage : 0 – 200m/2/20/200/600V.
• Accuracy : ±0.8%
• AC Voltage : 0 – 200m/2/20/200/600V.
• Accuracy : ±1.5%
• AC Current : 0 – 20/200/100A.
• Accuracy : ±2.5%
• Resistance : 0 – 200/2k/20k/200k/2M/20M.Ohms
• Accuracy : ±1.0%
• Diode Test and Continuity Test
• Confirms to CE, IEC 61010, CAT-III 600V
• Overload Protection : upto 500V DC / AC RMS in all ranges

Additional Informations:

• Model DT-1250
• Brand Metravi

• Warranty One year against manufacturing defects

• Colour Black-Red

• Display Backlit LCD

• Auto Power Off Auto Power-off

• Data Hold Data Hold

• Jaw Dia 30mm

• Diode & Continuity Diode & Continuity test

• AC or AC/DC AC

• Low Battery Indication Low Battery Indication

• Overload Indication Overload Indication

• Sampling Time 2 times/sec

• Power Source Battery Operated

• Battery Type Alkaline

• Battery Size AAA

• AC Current Range 0-20A/200A/1000A

• AC Voltage Range 0–200mV/2V/20V/200V/600V

• DC Voltage Range 0–200mV/2V/20V/200V/600V

• Resistance Range 0–200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

• No of Batteries 2

• AC Current Accuracy ±2.5%

• AC Voltage Accuracy ±1.5%

• DC Voltage Accuracy ±0.8%

• Resistance Accuracy ±1.0%

• Certifications CAT-II 1000V, CAT-III 600V, IEC 61010

Documentation:

• Wiki

Package Includes:

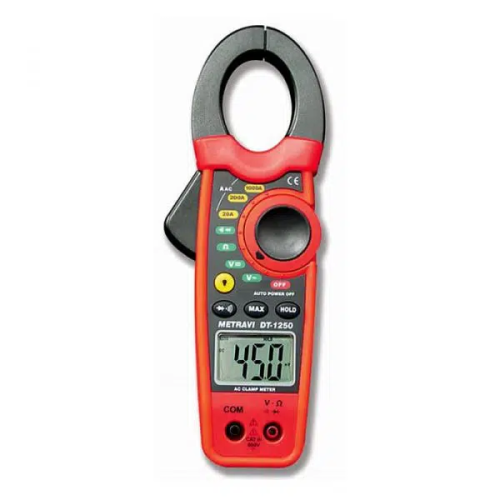

• 1 x Metravi DT-1250 Digital AC Clamp Meter
