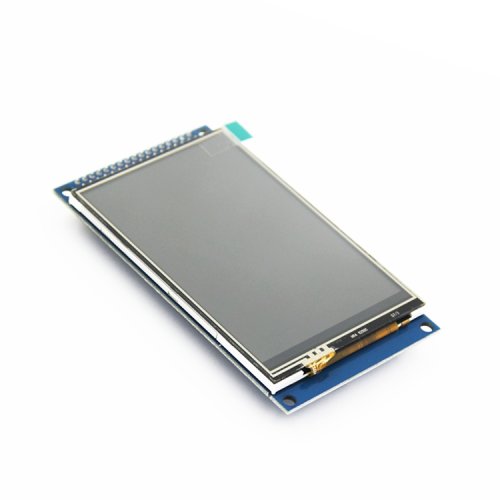

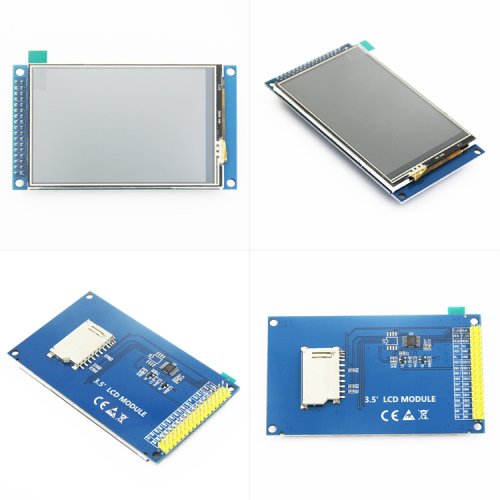

- 3.5-inch color screen, support 16BIT RGB 65K color display, display rich colors
- 320x480 resolution for clear display
- 16-bit parallel bus transmission for fast transfer speed
- Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards for direct plug-in use
- Support for touch function
- Support SD card function expansion
- Provides a rich sample program for STM32 and C51 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Name: Parameter
- Display Color :16BIT RGB 65K color
- SKU: MRB3503
- Screen Size : 3.5(inch)
- Screen Type: TFT
- Driver IC: ILI9486
- Resolution: 480*320 (Pixel)
- Luminance: 280Cd/m2
- Module Interface: 16Bit parallel interface
- Active Area : 48.96x73.44 (mm)
- Touch Screen Type: Resistive touch screen
- Touch IC XPT2046
- Module PCB Size:56.34x98.25 (mm)
- Operating Temperature -20℃~60℃
- Storage Temperature: -30℃~70℃
- Operating Voltage: 3.3V/5V
- Power Consumption: 0.56W
- Rough Weight(Package containing): No touch: 47 (g) / With touch: 58 (g)
Package Includes:
- 1 x 3.5 inch TFT Display 480 X 320 Module With Touch Screen Panel - ILI9481 Driver IC
3.5" inch ILI9486 TFT Touch Shield LCD Module 480x320 for Arduino Uno
- Product Code: :PRC-LCD-HY-3.2-TFT
- Reward Points: :14
- Availability: :Out Of Stock
-
रo 1,761.11
- Price in reward points: 1428
