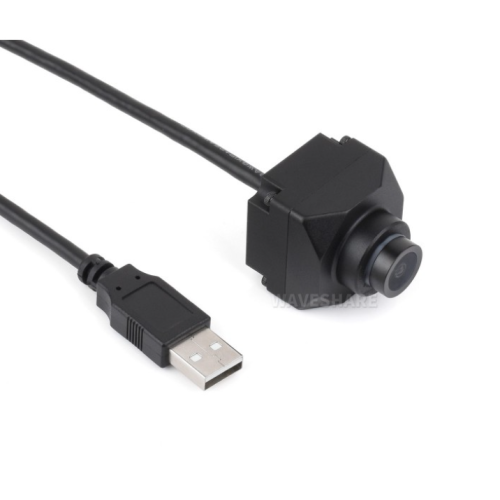

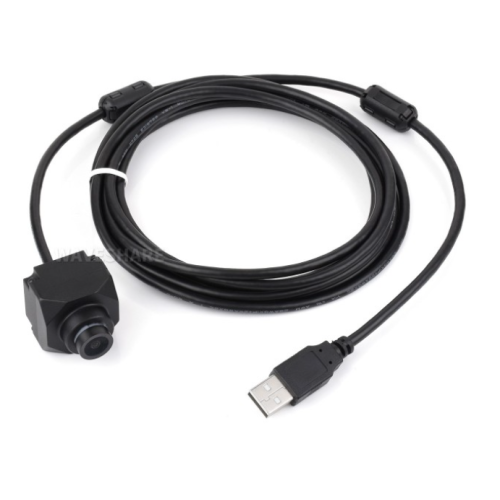

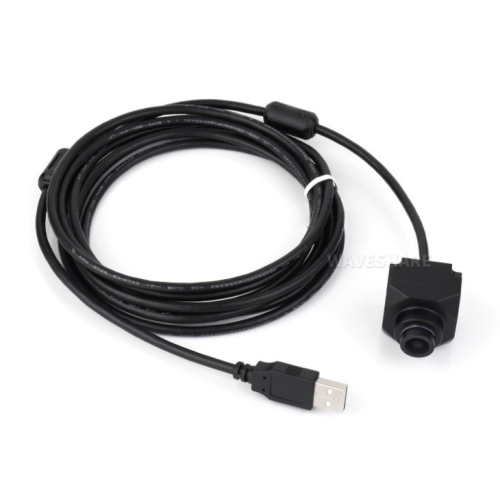

2MP USB Camera Module:

PS5268 sensor | USB 2.0 port | High Dynamic Range | water-resistant

Features:

The PS5268-2MP-USB-Camera-A is based on the PS5268 sensor, adopts a USB port for signal transmission, offering excellent compatibility. Its direct plug-and-play connection to a host device simplifies integration and deployment. The module supports a stable 30FPS frame rate, ensuring smooth and lag-free video playback. Featuring a high dynamic range of up to 120 dB along with outstanding image quality, it captures rich image details clearly in both bright daylight and low-light nighttime conditions.

The PS5268-2MP-USB camera module is also equipped with a water-resistant case, providing enhanced environmental adaptability, making it suitable for various applications requiring high-precision visual data, such as industrial inspection, robotic vision, and security surveillance, offering accurate and reliable visual data support.

Specifications:

• Pixels : 2MP
• sensor chip : PS5268
• Interface : USB 2.0
• Camera : Sensor size : 1/2.4inch
• Aperture (F) : 2.0
• Focal length (EFL) : 3.35mm
• Field of View (FOV) : 112.6° (H) / 57.6° (V)
• Focusing : Fixed-focus
• Shutter : Rolling shutter
• Image : Format support : MJPG
• Static image resolution : 1920 × 1080
• Video recording MJPG:
• 30FPS 1920 × 1080
• 30FPS 1280 × 960
• 30FPS 1280 × 720
• 30FPS 960 × 720
• 30FPS 720 × 480
• 30FPS 640 × 480
• 20FPS 320 × 240
• 30FPS 320 × 180
• Operating Voltage : 5V ± 5%
• Operating current : 90mA
• Dimensions : 30.00 × 30.00 × 35.15 (mm)

high dynamic range:

120dB high dynamic range (HDR), ensuring the capture of rich image details in both high and low light environments

water-resistant case design:

Equipped with an IP67 water-resistant case, providing extra durability and protection,

making it suitable for outdoor and other environments

Plug and Play, Easy Connection:

Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using

for reference only, please refer to the package content for the detailed part list.

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x PS5268-2MP-USB-Camera-A
