For Pi Zero Generation, no NIC is inconvenient, because its core system is Linux,
most of operations are based on Linux’s command line via ssh service, so a Network Adapter is required.

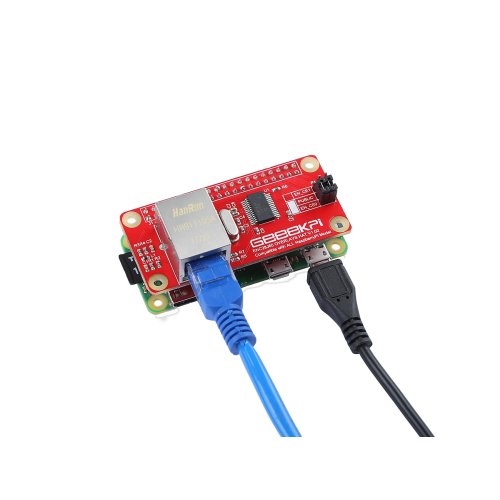

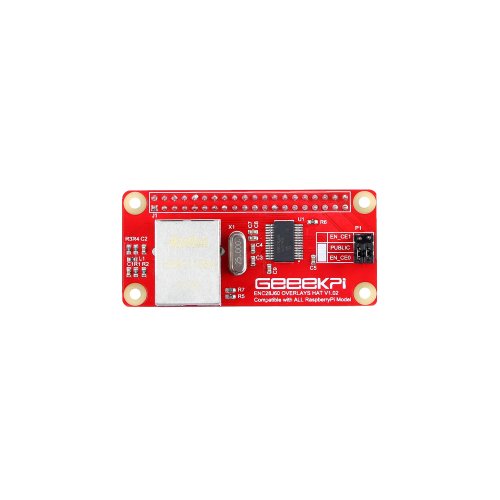

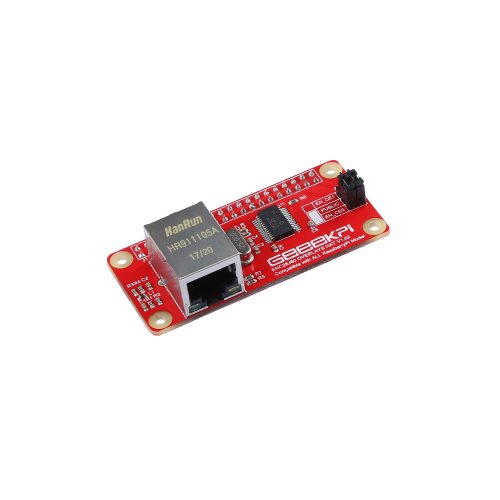

The Pi zero Enc28j60 is a simple Network Adapter module for Pi zero
It is very easy to assemble and configure.
It allows your Raspberry Pi zero to access the network smoothly, and it is easy to do system updates and software installation operations.

Features:

  • Easy to assemble
  • Easy to setup
  • Official OS overlay support
  • Stable and fast

How to configure it:

1. Install the NIC module into the raspberry Pi.

2. Connect the network cable to ensure that your router supports DHCP and works well.

3.Burn the Raspbian image to TF card.

4. Edit the /boot/config.txt file by your favorite editor such as"nano"or"vim.tiny", and add the following parameter:

 1

 dtoverlay=enc28j60

Then save the exit and reboot the raspberry Pi.


NOTE: The module is tested only in raspbian environments.

Technical Details:

Dimensions 65.5mm x 30mm x 23.5mm
Weight G.W 15g
Battery Exclude

Documents:



Write a review

Please login or register to review

ENC28J60 OVERLAYS HAT for Raspberry pi

  • Product Code:Seeed-ENC28J60-OVERLAYS-HAT
  • Reward Points:7
  • Availability:In Stock
  • रo 811.84

  • Ex Tax:रo 688.00
  • Price in reward points:688

  • 10 or more रo 805.94
  • 20 or more रo 798.86
  • 95 or more रo 792.96
  • 185 or more रo 785.88
