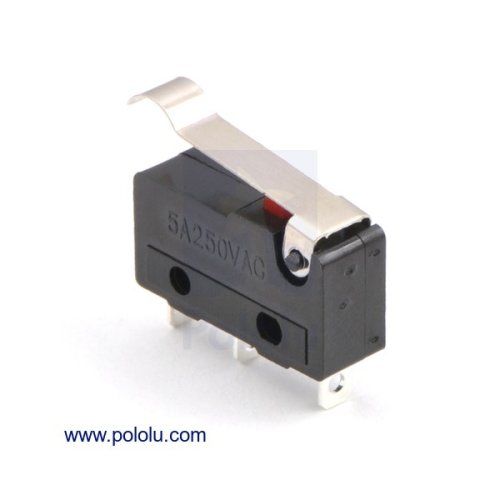

This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79" x 0.25" x 0.40"), and the 15.6mm (0.61") lever arm has a semicircular bump at the tip that simulates a roller. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used.

Package Includes:

1 x Pololu 1405 Snap-Action Switch with 15.6mm Bump Lever: 3-Pin, SPDT, 5A

Pololu 1405 Snap-Action Switch with 15.6mm Bump Lever: 3-Pin, SPDT, 5A

Brand:: Pololu
Product Code: :Pololu-1405-SPDT-5A
Reward Points: :2
Availability: :In Stock

रo 208.42
Price in reward points: 208
25 or more रo 198.95
100 or more रo 191.58
250 or more रo 186.33

Qty

0 reviews / Write a review
