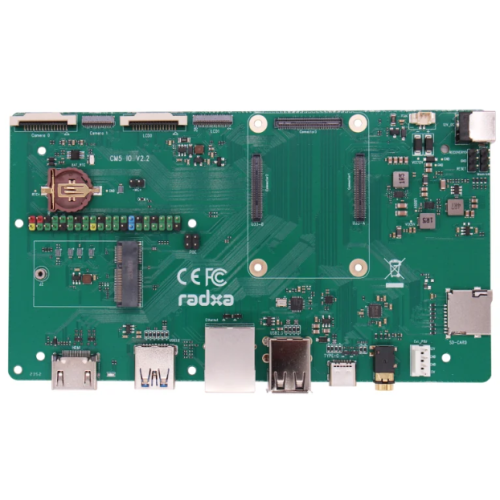

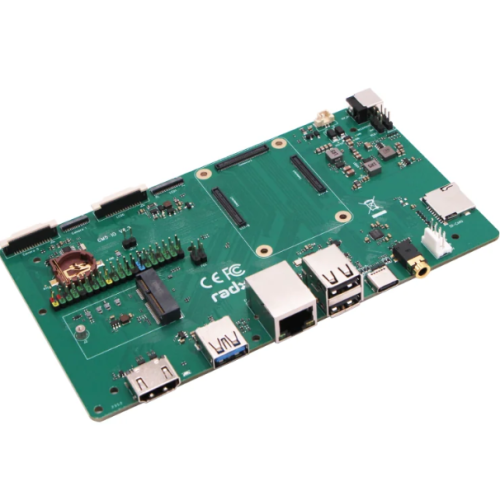

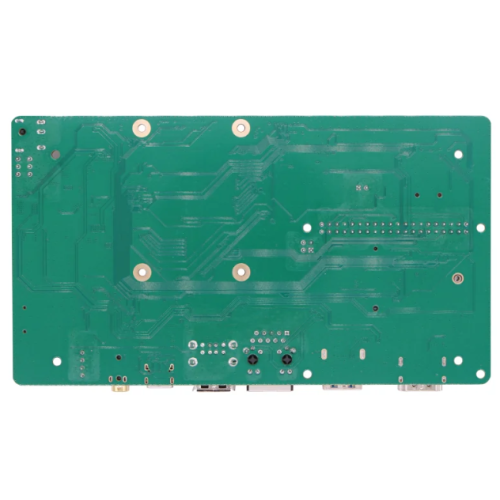

Radxa CM5 IO Board is an application board for the RADXA CM5

Powered by the CM5 module - the Radxa CM5 IO board enables access to the complete feature set this Computing Module provides.

Features:

• Designed for Radxa CM5
• Dimensions 160mm x 90mm
• Multiple display interfaces, HDMI, 2x MIPI DSI, USB3.0 OTG Type C Port
• M.2 E Connector
• Ubuntu/Debian and Android support

Technical Details:

• Supported CM´s
• RADXA CM5 all variants
• Connectivity
• 2 x USB 2.0 Type-A ports
• 1 x USB 3.0 HOST port ( 5Gbps, type A connector )
• 1 x USB 3.0 OTG Type-A port
• 1 x PCIe 1-lane Host, Gen 2 ( 5Gbps, x1 PCIe connector )
• 2 x SATA 7P connector, one shared with USB 3, one shared with PCIe
• 1x microSD card slot
• 40 x GPIO pin header
• Networking
• 1x Gigabit Ethernet RJ45 with PoE support
• Video
• 1x HDMI up to 4K x 2K@60HZ
• 2x MIPI DSI 4 lanes up to 1920 x 1080@60HZ, support dual display
• 2x MIPI CSI camera input
• Audio
• 3.5mm headphone jack with mic support
• Other
• Lion battery connector
• RTC battery connector
• PoE header
• FAN header
• Power
• DC 12V 2.5/5.5mm
• or 4P ATX PSU with floppy power connector
• Dimension
• 160 mm × 90 mm
• Product lifetime
• Radxa CM5 IO Board will remain in production until at least Sep 2029

Package Includes:

• 1 x RADXA CM5 IO Board - RC122
