Note: This is to preorder for shipping May 2017

Get on with a board that gets you into the newly available LTE-M networks. The GPy gives you full flexibility during testing, install, deployment and is delivered RCM, IC, CE and FCC certified.

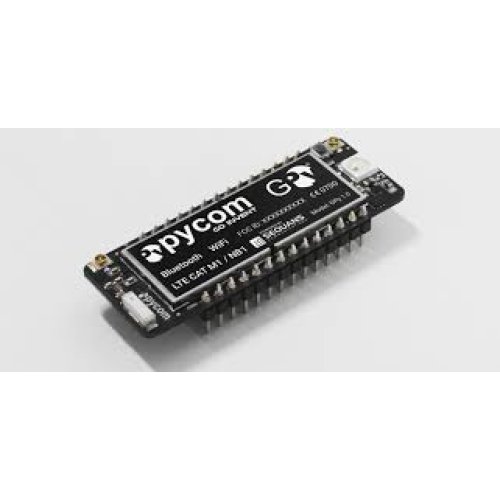

With WiFi, BLE and cellular LTE CAT M1/NB1, the GPy is the latest Pycom triple-bearer MicroPython enabled micro controller on the market today – the perfect enterprise grade IoT platform for your connected Things. Create and connect your things everywhere, fast.

PLEASE NOTE: Pycom modules are powered by the NEW and FEATURE PACKED Espressif ESP32 chip. As a result our firmware is evolving constantly as the ESP32 IDF matures. Regular firmware updates are therefore provided.

GPy Features:

– Powerful CPU

– 1KM WiFi range

– MicroPython enabled

– Fits in a standard breadboard (with headers)

– Ultra-low power usage: fraction compared to other connected microcontrollers

LTE-M Operating Frequencies

– 34 bands supported from 699Mhz to 2690Mhz (Total world-wide support)

LTE-M Specification

– One single chip for both CAT M1 and NB1

– 3GPP release 13 LTE Advanced Pro

– Supports narrowband LTE UE categories M1/NB1

– Integrated baseband, RF, RAM memory and power management

– Reduced Tx power class option

– Peak power estimations: TX current = 420mA peak @1.5Watt RX current = 330mA peak @1.2Watt

– Data rates:

– 300kbps DL

– 375 kbps UL (LTE Cat M1 in 1.4Mhz in 1.4 Mhz, HD-FDD)

– 40 kbps DL

– 55kbps UL (LTE Cat M2 in 200 kHz, HD-FDD)

Interfaces

– 2 x UART, 2 x SPI, I2C, I2S micro SD card

– Analog channels: 8×12 bit ADCs, 2×8 bit DAC

– Timers: 2×64 bit with PWM with up to 16 channels

– DMA on all peripherals

Power

– Voltage Input: 3.3V – 5.5V

– 3v3 output capable of sourcing up to 400mA

Processing

– Espressif ESP32 SoC

– Dual processor + WiFi radio system on chip

– Network processor handles the WiFi connectivity and the IPv6 stack

– Main processor is entirely free to run the user application

– An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA

Security & Certifications

– SSL/TLS support up to 1.2

– WPA Enterprise security

– AES encryption engine

Memory

– RAM: 4MB

– Flash Memory: 8MB

– GPIO: Up to 22

– Hardware floating point acceleration

– Python multi-threading

Hash / Encryption
