EMW3166 is one embedded Wi-Fi module of low-power, small-size and low-cost designed by MXCHIP. It integrates one Cortex-M4 microcontroller of 256Kbytes SRAM and 1Mbytes on-chip flash with another 2Mbytes on-board SPI flash added. Various peripheral interfaces of analog and digital are available. The power supply voltage is 3.3V. It applies half-hole footprint for hand-soldering. The module runs MICO, which is the IOT OS System of MXCHIP, and is available for secondary development. The TCP/IP protocols and security encryption algorithm could be applied in various Wi-Fi applications. In addition, several particular firmware prepares for some typical applications, like UART to Wi-Fi DTU, easylink configuration and services for cloud interfacing.

Feature

Properties

• Integration of one Cortex-M4 MCU and one RF chip of 802.11 b/g/n

• Cortex-M4 core at 100MHz

• 2M bytes on-board SPI flash and 1M bytes on-chip flash

• 256K bytes SRAM

Operation voltage

• Low voltage mode: 2.3~3.0V

• Normal voltage mode: 3~3.6V

Peripherals

• 25 GPIOS

• JTAG/SWD debug interfaces

• Wi-Fi connectivity:

• 802.11 b/g/n available

• WEP, WPA/WPA2, PSK available

• [email protected], [email protected], [email protected]

• Receiver Sensitivity: -87dBm

• Station, Soft AP and Wi-Fi Direct

• Easylink available

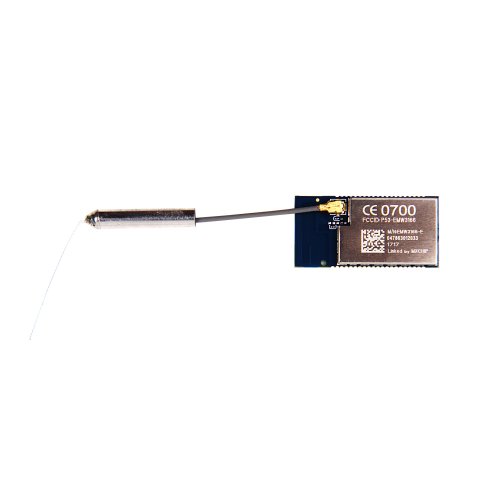

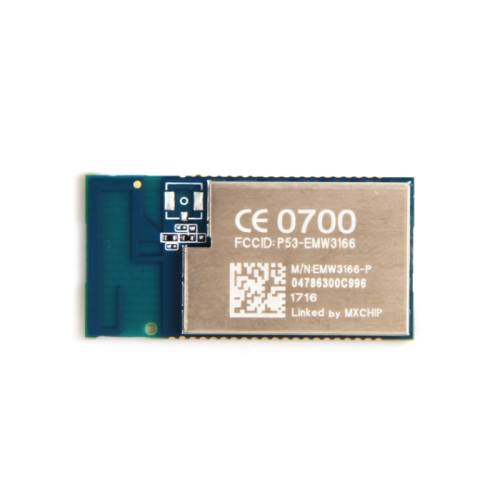

• On-board PCB antenna and IPEX connector for external antenna

• CE, FCC compliant

Operation Temperature

• -30°C~+85°C

Application scenarios

• Auto electronics

• Point of Sale system

• Industrial automation systems

• Medical/Health care

• Smart home appliances

• Smart LED
