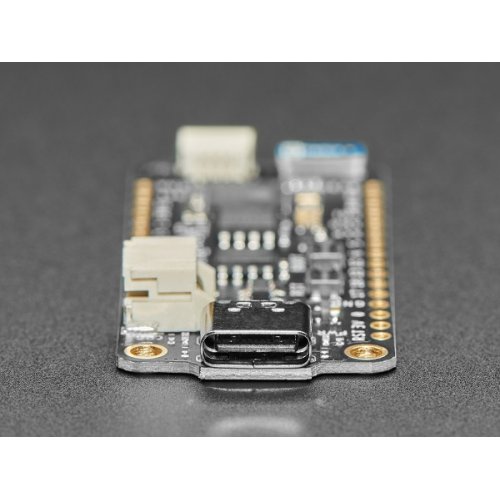

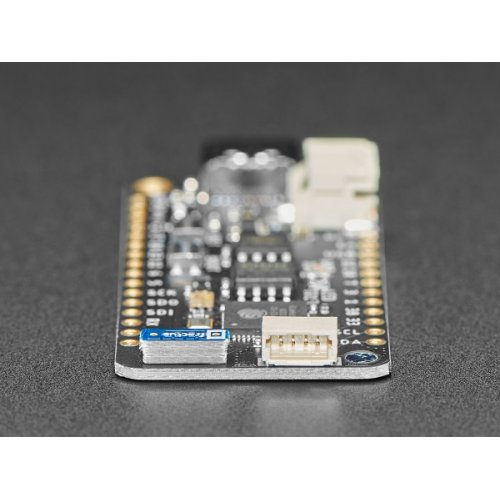

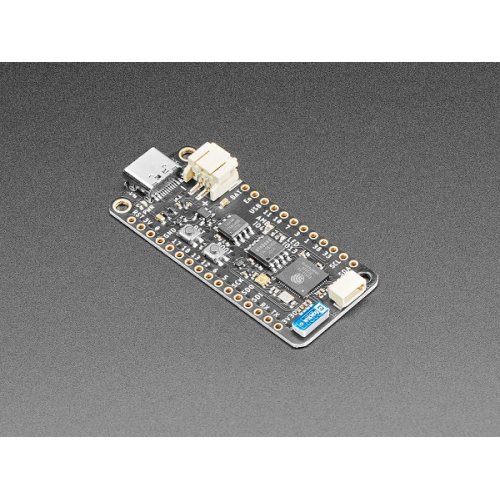

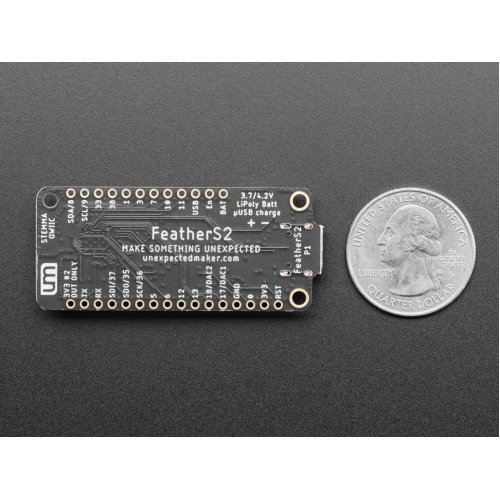

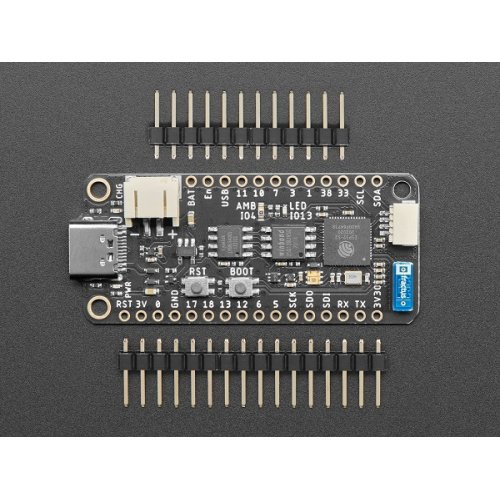

Introducing the FeatherS2 - The full-featured ESP32-S2 based development board in a Feather format from Unexpected Maker. The FeatherS2 is a power house, fully souped up with 16 MB of Flash memory and 8 MB of QSPI-based external PSRAM so you can have massive storage buffers.

This Feather comes with two 3.3V regulators: The first one is for the general operation of the board and the ESP32-S2, RAM and Flash. The second LDO is for you to use to connect external 3V3 modules, sensors and peripherals, and it has programmable EN control tied to GPIO21 and it’s connected to the deep sleep capabilities of the S2, so if the S2 goes into deep sleep, the 2nd LDO is automatically shut down Both regulators are ultra low noise and have ultra low quiescent current, and both support a maximum of 700mA output.

This Feather also comes with our favorite connector - the STEMMA QT, a chainable I2C port that can be used with any of our STEMMA QT sensors and accessories.

Features & Specifications:

32-bit 240 MHz single-core processor
16 MB SPI Flash
8 MB extra PSRAM
2.4 GHz Wi-Fi - 802.11b/g/n
3D Antenna
2x 700 mA 3.3 V LDO regulator
Optimized power path for low-power battery usage
LiPo battery management
Power (red), Charge (orange) & IO13 (blue) LEDs
21x GPIO
USB-C
USB backfeed protection
APA102 RGB LED (CLK IO45, DATA IO40)
ALS-PT19 Ambient Light Sensor (IO14)
QWIIC/STEMMA connector
Feather format

Package Includes:

1 x FeatherS2 - ESP32-S2 Feather Development Board

Adafruit 4769 FeatherS2 - ESP32-S2 Feather Development Board

Brand:: Adafruit
Product Code: :Ada-4769-FeatherS2
Reward Points: :35
Availability: :In Stock

रo 3,366.33
रo 3,267.37
Price in reward points: 3552
90 or more रo 2,991.58
