Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Pivariety camera modules make users get better performance and a wider variety of camera, lens options. In other words, Pivariety breakthrough the limitations of the closed-source official supported camera driver and camera modules (V1/V2/HQ).
Pivariety made it possible to be well-tuned ISP with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

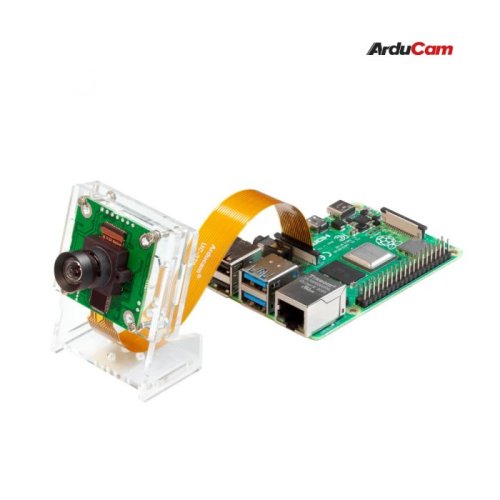

This Pivariety AR0234 Color Global Shutter Camera is migrated Raspberry Pi Cameras, which eliminate rolling shutter artifacts to shoot high-speed moving objects in color sharp images.

2.3 MP AR0234 global shutter color sensor, maximum frame rate up to 60 fps.
90 deg (H) wide view angle
Gstreamer support.
V4L2 support.
Compatible w/ all libcamera-based apps maintained by the RPi foundation.

Features:

This camera is a new member of Arducam Pivariety series, which adopts an AR0234 color global shutter and also supports hardware ISP functions. That is to say, this Pivariety can eliminate rolling shutter artifacts, performs much better than the Official ones when shooting high-speed moving objects.
External Trigger Function: This function is used to capture the image and helps in synchronized streaming by connecting two or multiple cameras. In production applications (such as assembly line production), the external trigger mode can synchronize the camera with other devices.
Shot Image and Video: Image resolution of 2.3 MP 1920 x 1200; ISP output image format of JPG, YUV420, RAW, DNG; ISP Output video Format of MJPEG, H.264 with frame rates 1920×1200 at 60 fps, with ISP at 30 fps; 1920×1080 at 60 fps, with ISP at 30 fps; 1280×720 at 120 fps, with ISP at 60 fps.
Lens Spec: M12 lens mount, focal length of 3.6 mm±5%, F.NO 3.0, FOV 120°(D)/90°(H)/75°(V)
NOTE: Arducam Pivariety can only work with libcamera, does NOT support Raspistill or Raspivid; V4L2 compliant, but only RAW format images can be obtained, without ISP support.

Specifications:

Image Sensor: 2.3 MP AR0234
Resolution: 1920Hx1200V
Pixel Size: 3μm(H)×3μm(V)
Optical Format: 1/2.6”
Lens Spec: M12 lens mount, focal length of 3.6 mm, F/3.0, 90 degrees horizontal field of view (HFoV)
Frame Rate: 1920×1200 at 60 fps, with ISP at 30 fps; 1920×1080 at 60 fps, with ISP at 30 fps; 1280×720 at 120 fps, with ISP at 60 fps
Sensor Output Format: RAW10
ISP Output Format: The output image format of JPG, YUV420, RAW, DNG; The output video format of MJPEG, H.264
Interface Type: 2-Lane MIPI

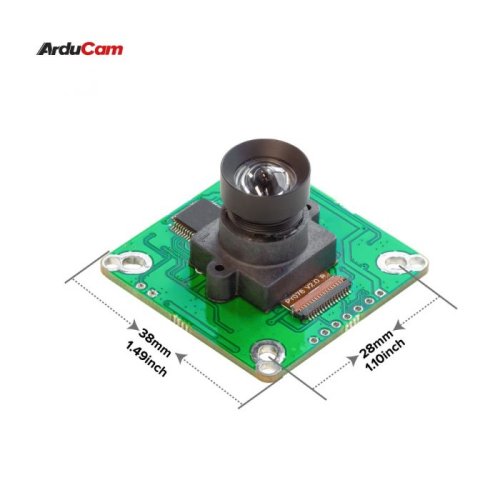

Camera Board Size: 38 mm × 38 mm

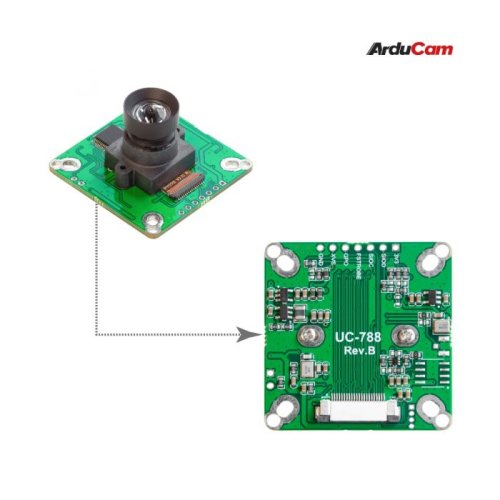

Pivariety Adapter Board Size: 40 mm×40 mm

Documents:

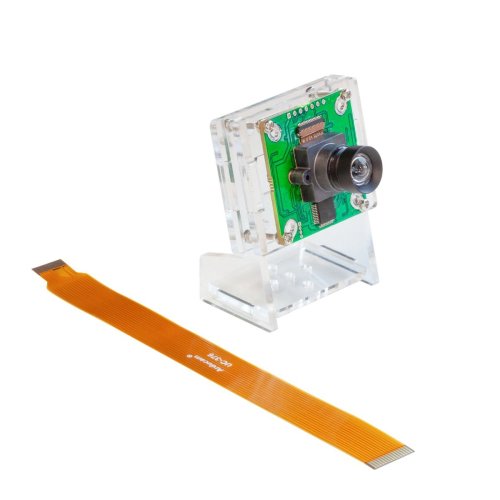

Package Includes:

1 x Arducam 2.3 MP AR0234 ISP Camera Module
1 x 150mm 15pin to 22pin FPC cable

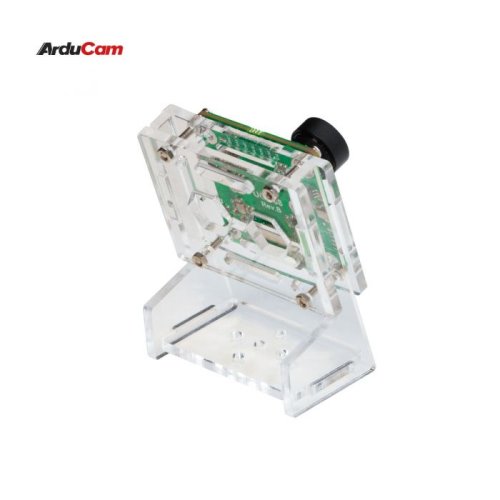

1 x acrylic case kit with assembly accessories

Sensor Specifications
Sensor type	2.3MP AR0234
Frames per Second	1920×1200 at 60 fps, with ISP at 30 fps; 1920×1080 at 60 fps, with ISP at 30 fps; 1280×720 at 120 fps, with ISP at 60 fps
Pixel Size / Density	3μm(H)×3μm(V)
Resolution	1920Hx1200V
Lens Specifications
Focal Length	3.6mm±5%
Optical Format	1/2.6”
Field of View	Horizontal FoV: 90 degrees
Lens Mount	M12
Angle of View	90 deg (H)
Physical Attributes
Dimensions	Camera Board: 38 mm × 38 mm Pivariety Adapter Board: 40 mm×40 mm
Additional Information
Warranty	90 days

Arducam B0353 Full HD Color Global Shutter Camera for Raspberry Pi, 2.3MP AR0234 Wide Angle Pivariety Camera Module

Brand: ArduCAM
Product Code:NR-ArdC-B0353-RPi-Camera
Reward Points:104
Availability:In Stock

रo 11,849.56
रo 10,367.48
Ex Tax:रo 8,786.00
Price in reward points:10460
3 or more रo 11,750.44
6 or more रo 11,800.00
15 or more रo 11,651.32

Qty

0 reviews / Write a review
