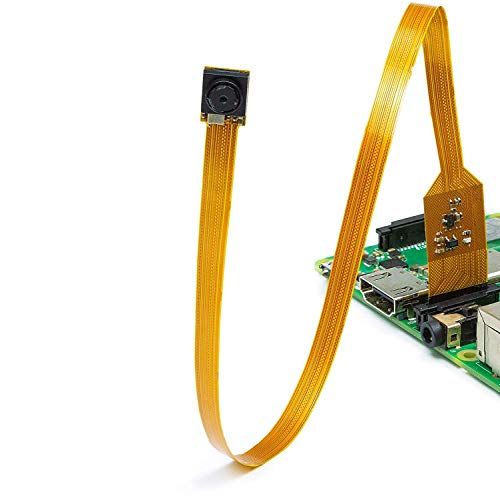

The board itself is tiny, at around 300mm x 16mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system.

Features:

High-Definition video camera for Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
Without Integral IR filter
Angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Still picture resolution: 2592 x 1944
Max video resolution: 1080p
Max frame rate: 30fps

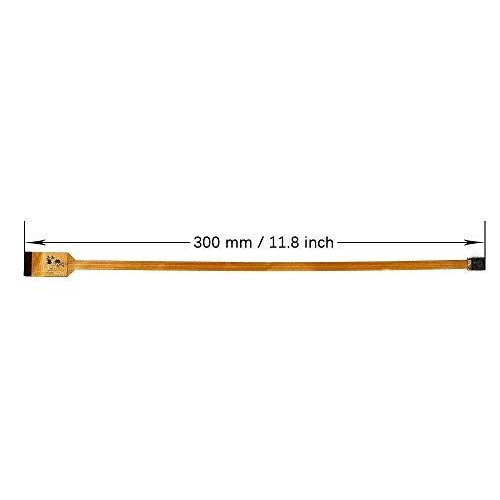

Size: 300 x 16 mm flex cable, neck wide is 6mm

Applications:

Cellular phones
PDAs
Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms

Note: Raspberry Pi Type B Development Board is not included

Documents:

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Spy Camera Module 1/4 Inch 5 Mega pixel NOIR Module with flex cable for Raspberry Pi

Sensor Specifications
Resolution	2592 x 1944
Lens Specifications
Focusing Range	1 m to infinity
Field of View	2.0 x 1.33 m at 2 m
Angle of View	54 x 41 degrees
Physical Attributes
Dimensions	300 x 16 mm flex cable
Additional Information
Warranty	90 days
