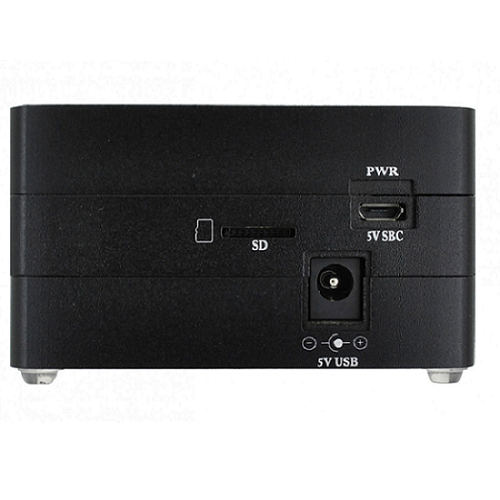

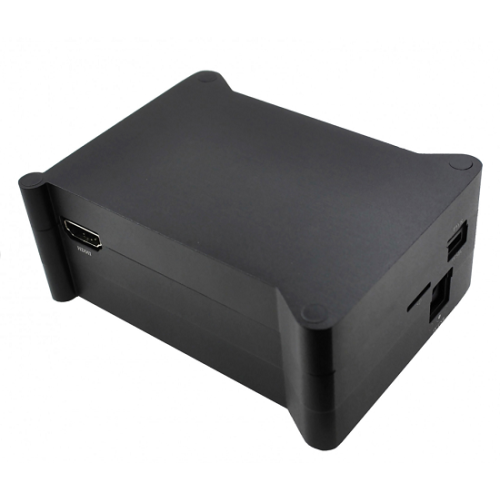

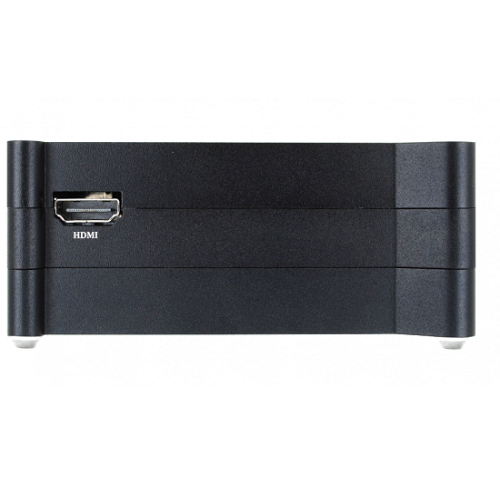

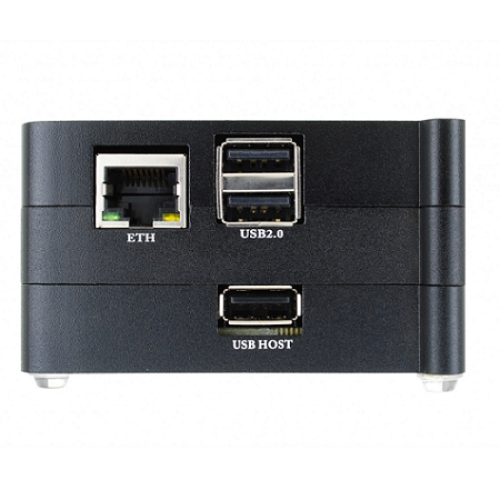

Aluminum Case for USBridge.
Case set includes:
Bottom layer, center layer, top layer
4 adhesive ultra grip rubber feet
4 adhesive top screw covers
1 silicone thermal pad for the main CPU and 1 for the smaller PMU
4 M3 x 40 case assembly screws
Please note that the existing heat sinks on your Sparky board will have to be removed in order to use this case. See process here.
See the heat dissipation comparison between the case and regular heat sink.
|
Sparky USBridge / Piano 2.1 Aluminum Case Temperature Comparison (Room Temp. @27 °C) |
||||
| Sparky With Aluminium case |
Sparky with Heat Sink (Open Case) |
|||
| Test Case | Sparky CPU Temp. (°C ) | Temp (°C ) on Case | Sparky CPU Temp.(°C ) | Temp (°C ) on Top of heat sink |
| Idle - Minimal Load (2 Hour) | 44 | 35 | 50 | 40 |
|
USBridge Normal Music Plays up to 352k Sample Rates (12 Hour Continuous Play) |
48-50 | 36 | 54 | 44 |
| Full Load (4 Core 100%, 10-15 Minutes), Music Playing | 53-54 | 37-38 | 65-67 | 48 |
Features:
- AL6063-T5 aluminum
- Sandblasted mat black anodize finish
- 3 layer design
- Integrated heat dissipation on middle layer
- Laser engraved
- Easy to assemble
- High grip rubber feet
- Top screw head covers
- Case Dimensions: 10cm x 7cm x 5cm

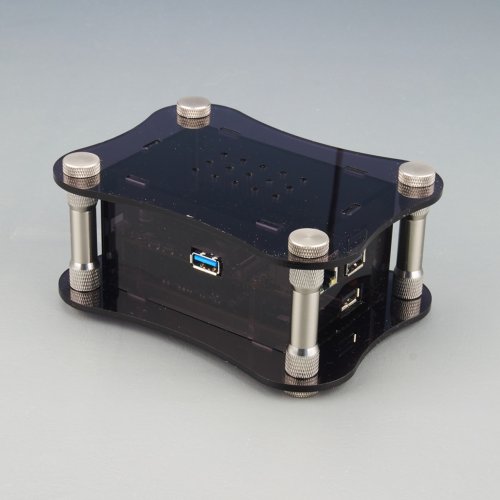

Acrylic / Aluminium Case For USBridge
- Brand: Allo
- Product Code:Allo-Aluminium-Case-USBridge
- Reward Points:8
- Availability:In Stock
-
रo 885.00
- Ex Tax:रo 750.00
- Price in reward points:750
