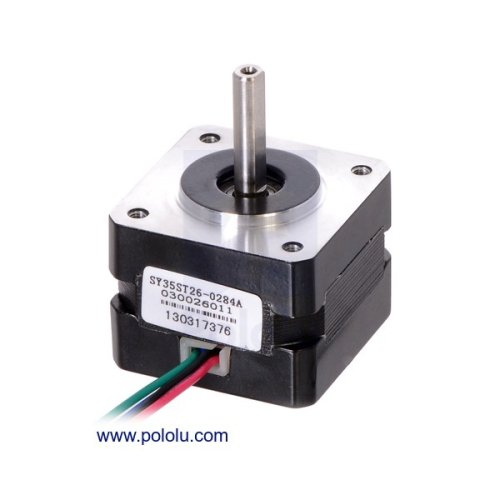

This NEMA 14-size hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 280mA at 7.4V / 500mA at 10V, allowing for a holding torque of 650 g-cm (9 oz-in) / 1 kg-cm (14 oz-in). The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges
Specifications:
Applications:
- Printers
- CNC machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
Documents:
Warranty:
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- Pololu 1207 / 1208 Stepper Motor: Bipolar, 200 Steps/Rev
| Motor Specifications | |
| Type | NEMA 14 Stepper Motor: Bipolar |
| Torque | 1207-650 g-cm, 1208-1 kg-cm |
| Step Size | 1.8° step angle |
| Shaft Diameter | 5mm |
| Steps per revolution | 200 |
| Electrical Specifications | |
| Maximum Operating Voltage | 1207-7.4V, 1208-10V |
| Maximum Operating Current | 1207-280 mA per coil, 1208-500 mA per coil |
| Resistance | 1207-26 Ω per coil, 1208-20 Ω per coil |
| Inductance | 1207-19.2 mH per coil, 1208-13.5 mH per coil |
| Physical Attributes | |
| Weight | 1207-130g, 1208-140g |
| Dimensions | 1207-35mm square × 26 mm, not including the shaft (NEMA 14), 1208-35mm square × 28 mm, not including the shaft (NEMA 14) |
| Length | Lead length: 30 cm (12″) |
| Additional Information | |
| Warranty | |
