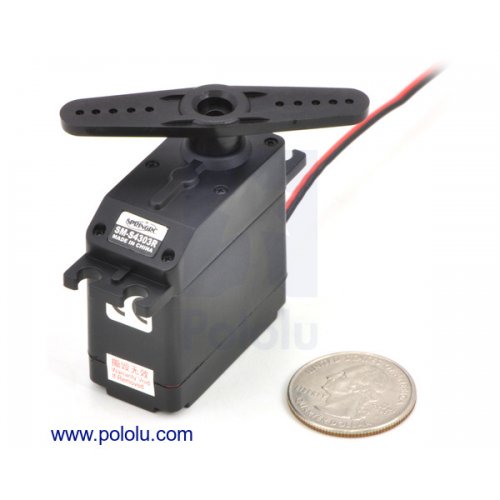

The SM-S4303R is a standard-sized servo that has been built by SpringRC specifically for continuous rotation. At 6 V, it has a maximum rotation speed of 54 RPM (no-load) and can produce up to 71 oz-in (5.1 kg-cm) of torque. It features two ball bearings on the output shaft for reduced friction, and it offers easy access to the rest-point adjustment potentiometer. The servo can be controlled using a direct connection to a single microcontroller I/O line without any additional electronics, which makes it a great actuator for beginner robotics projects.

The SM-S4303R continuous rotation servo converts standard RC servo position pulses into continuous rotation speed. The default rest point is 1.5 ms, but this can be adjusted by using a small screwdriver to turn the middle-point positioner. Pulse widths above the rest point result in counterclockwise rotation, with speed increasing as the pulse width increases; pulse widths below the rest point result in clockwise rotation, with speed increasing as the pulse width decreases.

Specifications:

• Digital?: N
• Speed @ 6V: 54 rpm
• Stall torque @ 6V: 71 oz·in
• Speed @ 4.8V: 43 rpm
• Stall torque @ 4.8V: 46 oz·in

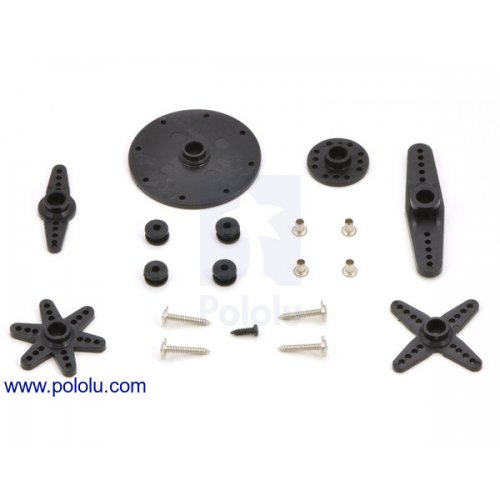

• Hardware included?: Y
• Lead length: 11 in

Warranty:

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Pololu 1248 SpringRC SM-S4303R Continuous Rotation Servo
