SPECIFICATION:
- VM Motor Power Supply: 2.5 V ~ 13.5 V
- VCC Logic Power Supply: 2.7 ~ 5.5 V
- Output Current: 1.2A continuous current (per channel)
- Start/Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
- Arduino Control Port: Digital pins 3, 4, 5, 6, 7, 8, 11, 12
- Working Temperature: -20 ~ 85 ℃
- Dimensions: 53mm x 52mm/2.09 x 2.05'
- Weight: 24g
Documents:
Package Includes :

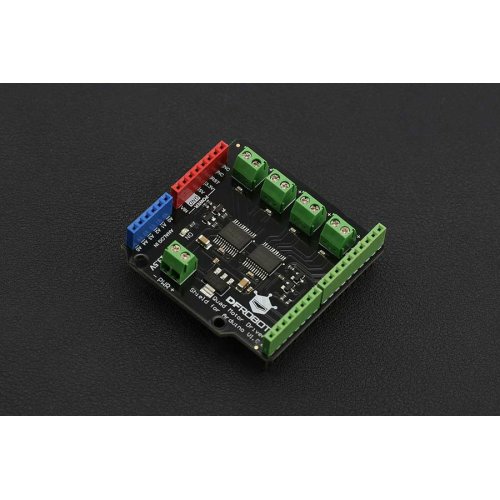

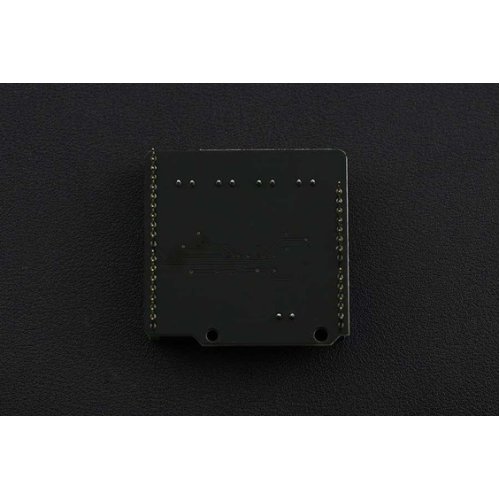

- 1 X Quad DC Motor Driver Shield for Arduino
