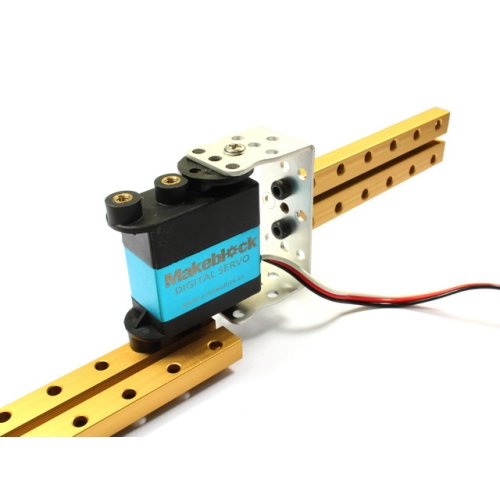

Me-Servo is specially design for robotics, it’s very flexible to connect to other Makeblock structures.
| Mechanical Specification | |
| Size | 40×20×41mm |
| Weight | 75g |
| Gear type | 5 metal gear |
| Limit angle | 210°±5° |
| Bearing | 2*Bearing |
| Horn gear spline | Φ8mm35T |
| Horn type | Plastic, POM |
| Case | Aluminum alloy+Engineering plastics |
| Connector wire | 230mm±5mm |
| Motor | Coreless Motor |
| Splash water resistance | No |
| Electrical Specification | |
| Operat voltage | 6.0V |
| Idle current | 8mA |
| No load speed | 0.19sec/60° |
| Runnig current | 450mA |
| Peak stall torque | 16.5kg.cm |
| Stall current | 2500mA |
| Control Specification | |
| Command signal | Pulse width modification |
| Amplifier type | Digital controller |
| Pulse width range | 500-2500usec |
| Neutral position | 1500usec |
| Running degree | 180°±3°(when 1000～2000usec) |
| Dead band width | 5 usec |
| Rotating direction |
Counterclockwise (when 1000～1500usec) |
Servo Motor - MEDS15
- Brand: MakeBlock
- Product Code:Mke-Blck-Me-Servo-MEDS15
- Reward Points:35
- Availability:Order now and get it in 07 days
-
रo 4,189.00
- Ex Tax:रo 3,550.00
- Price in reward points:3550
Related Products
Motor Driver Kit
The Motor Shield Kit allows you to connect two DC motors to the Digispark development board. The Mot..
रo 295.00 रo 1,552.88 Ex Tax:रo 250.00
Robot Gripper
This robot gripper is perfect for all your gripping needs. Made from a heavy duty but lightweight ac..
रo 4,189.00 Ex Tax:रo 3,550.00

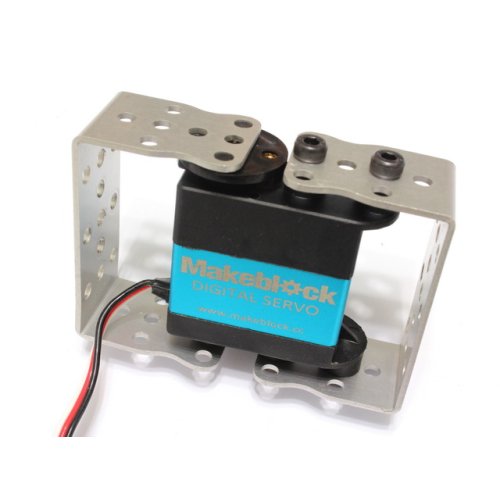

Servo Motor Bracket (Pair) - MEDS15
