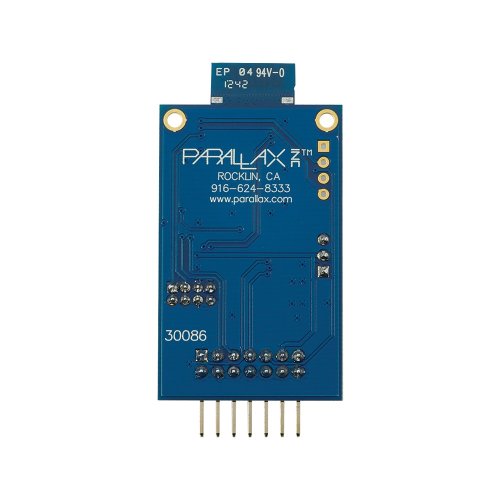

The RN-42 Bluetooth Module provides a reliable method for creating a wireless serial communication interface between two devices such as a microcontroller, PC, cell phone, or another module. This module can pair up with devices supporting Bluetooth SPP (Serial Port Profile) to establish a serial interface. The RN-42 Bluetooth Module is breadboard-friendly and is compatible with all 5 V and 3.3 V microcontroller platforms.
Features:
- Fully qualified Bluetooth 2.1/2.0/1.2/1.1 module provides compatibility with many devices
- Low power consumption for long-lasting battery-powered projects
- Auto-connect/discovery/pairing modes make connecting to other modules easy
- LED indicators provide visual status of connection/mode
- Voltage jumper selects for use with 5 V and 3.3 V microcontrollers
Applications:
- Remote control a robot via PC, cell phone, or another microcontroller
- Measurement and monitoring systems
- Industrial sensors and controls
- Cable replacement (wireless serial interface)
Notes:
- Operating throughput and range may vary depending on environmental circumstances and RF interference.
Specifications:
- 2 x 7 dual row male header with 0.1" spacing
- Jumper selectable default baud rates: 9.6 or 115.2 Kbps
- Command-configurable baud rate from 1.2 to 921 Kbps
- Range: ~ 35 – 50 feet line of sight indoors*
- Voltage requirements: 5.0 VDC or 3.3 VDC
- Current requirements: ~5 mA sleep; ~15 mA idle; ~20 mA transmit; ~50 mA max
- Communication: 5 V/3.3 V asynchronous serial interface with RTS/CTS flow control from 1.2 – 921 Kbps
- Dimensions: 2.33” x 1.16” x 0.45” in (59.18 x 29.46 x 11.43 mm)
- Operating temp range: -40 to +185 °F (-40 to +85 °C)
Documents:
Package Includes:
- 1 x RN-42 Bluetooth Module
Parallax 30086 RN 42 Bluetooth Module
- Brand: Parallax Inc.
- Product Code:Plx-30086-RN-42-Bluetooth
- Reward Points:62
- Availability:In Stock
-
रo 7,371.46
- Ex Tax:रo 6,247.00
- Price in reward points:6247
-
- 2 or more रo 7,312.46
- 5 or more रo 7,253.46
- 12 or more रo 7,194.46
- 24 or more रo 7,135.46
