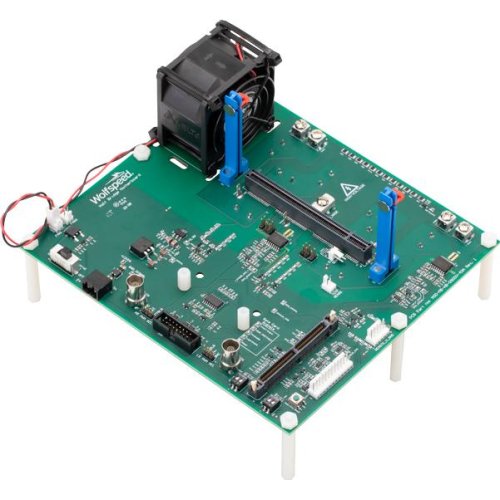

The SpeedVal Kit Half-Bridge Motherboard contains the power connections, DC bus, and interface for the daughter cards. This motherboard supports a single half-bridge configuration with one gate driver card and one power daughter card and is designed for double pulse testing or power buck/boost testing.

The PWM signals for the Silicon Carbide MOSFETs can be supplied externally from a function generator, or by using one of the optional control cards that plugs into the motherboard. The control cards have pre-tested firmware and a computer-based graphical user interface (GUI) that allow the controller to run a double pulse test or operate the evaluation board as a buck or boost converter in both synchronous and asynchronous configurations. The control card and GUI also provide system-level feedback of the input and output voltage and current readings.

Specifications:

DC Bus voltage up to 900V
Input/output current rating up to 40A
Low-inductance layout
Connector for optional control card
Screw terminal power connections
Ideal for double pulse testing and high-power testing
Onboard fan for cooling the Silicon Carbide devices during high-power testing

Unboxing Wolfspeed’s SpeedVal Kit:

What’s in the box? Join Wolfspeed Global Distribution Technical Manager Nick Powers as he unboxes the SpeedVal Kit Modular Evaluation Platform and highlights the advantages of using this flexible set of power building blocks for in-circuit evaluation of power system performance.
