Power Over Ethernet HAT (J) For Raspberry Pi 5 / CM 5, 5V / 5A Output, stable performance, Isolated switched-mode power supply, providing both network and power supply in one Ethernet cable

PoE HAT (J) for Raspberry Pi 5

Suitable For Raspberry Pi 5 / CM 5, Supports IEEE 802.3af/at Network Standard

5V 5A Output, Compatible With Raspberry Pi 5 Official Case

The PoE HAT (J) is an IEEE 802.3af/at-compliant PoE+ (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

• Standard Raspberry Pi 40PIN GPIO header
• Supports IEEE 802.3af/at (PoE / PoE+) Network Standard
• Onboard dedicated IC solution for more stable PoE power performance
• Adopts isolated switched-mode power supply (SMPS)
• Compact and easy to assemble

Specifications

• PoE HAT (J)
• PoE power input: 38V ~ 57V DC input
• Power output: GPIO header: 5V 5A (MAX)
• Dimensions: 64.98 × 64.98mm
• Network standard: IEEE 802.3af/at PoE / PoE+

Suitable for Raspberry Pi 5 / CM 5

Standard Raspberry Pi 40PIN GPIO header, easy to assemble into the official case

PoE / PoE+ support

providing both network connection and power supply for the Raspberry Pi 5 / CM 5 in one cable

* for reference only, the Raspberry Pi 5 and switch are NOT included, please refer to the package content for detailed part list.

Compatible With Raspberry Pi 5

Official Active Cooler

Installation with Raspberry Pi 5

Official Case

* for reference only, the Raspberry Pi 5 and active cooler are NOT included.

Application:

• With this product, you can use an Ethernet cable with PoE function to
• power the Raspberry Pi 5 / CM 5 directly

Outline dimensions:

Documentations:

• Wiki

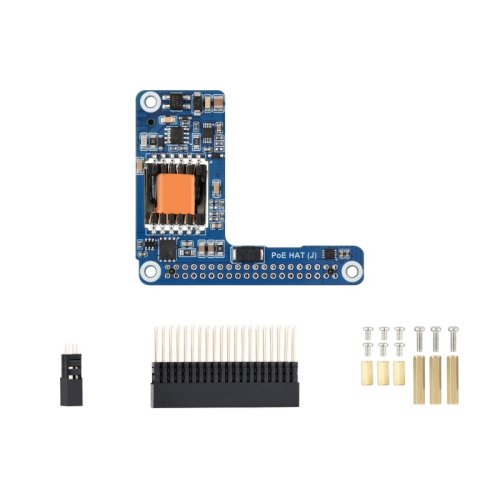

Package Includes:

• 1 x PoE HAT (J)
• 1 x 2*2 header 3mm (2.54mm pitch)
• 1 x 2*20 header 12.2mm (2.54mm pitch)
• 1 x Standoffs pack
