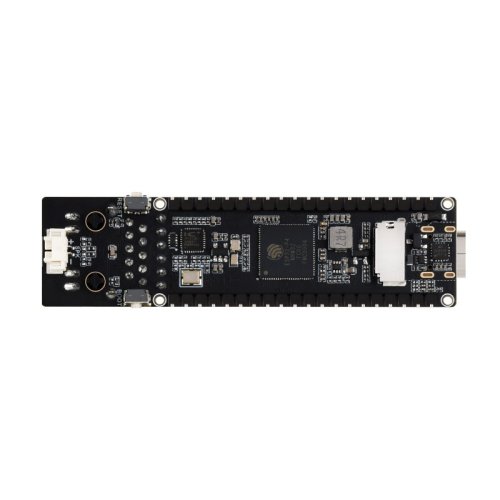

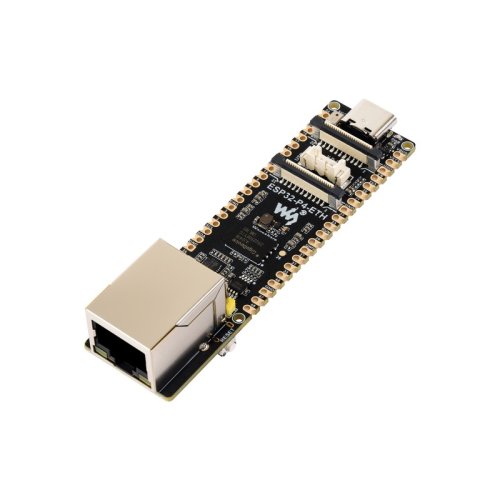

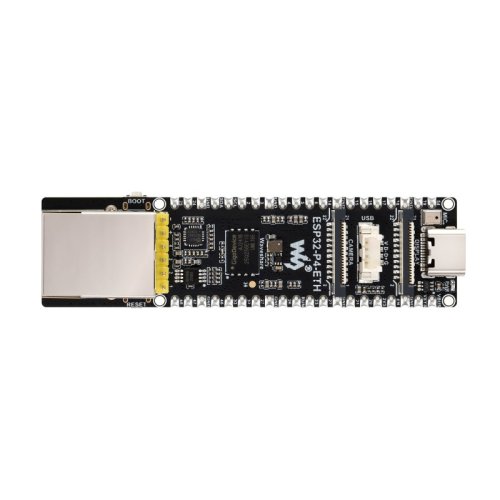

ESP32-P4-ETH High-Performance Development Board, Based On ESP32-P4, With 100 Mbps RJ45 Ethernet Port

ESP32-P4-ETH Development Board

High-performance Development Board Based On ESP32-P4

Rich Human-machine Interfaces

Development Board Introduction

This product is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.

The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG codecs, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP) and H.264 video encoder
• 32MB PSRAM in the chip's package, onboard 32MB Nor Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header, etc.
• Adapting 2*20 GPIO headers with 27 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Highly integrated and powerful performance

Adopts ESP32-P4 Module, onboard 32MB Nor Flash

Two power supply methods

Supports both PoE* and USB Type-C power supply

* the PoE module is required.

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply In Only One Ethernet Cable

* the PoE module is optional, and the switch in the picture above is NOT included.

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

* (the speaker is only included in the ESP32-P4-POE-ETH-KIT-A / B)

(the DSl display is only included in the ESP32-P4-POE-ETH-KIT-B)

the DSI LCD is only included in the ESP32-P4-POE-ETH-KIT-B

Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible with Raspberry Pi series boards

Note: for reference only, please refer to the package content for detailed part list.

Kit Connection Examples:

DSI Capacitive Touchscreen

Optional For DSI Capacitive Touch Display, IPS Screen,

Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle.

Supports 10-Point Touch, provides clear image and excellent visual experience

• Model: 10.1-DSI-TOUCH-A
• Resolution: 800 × 1280 (H × V)
• Communication Interface MIPI-DSI (2-lane)
• Brightness: 400cd/m² (supports customization for 1000cd/m² high brightness version)
• Touch Chip: GT9271
• Outline Dimension: 147.0 × 239.0 (mm)
• Display area: 135.36 × 216.58 (mm)
• Pixel pitch: 0.1692 (H) × 0.1692 (V) (mm)
• Contrast ratio: 800:1
• Operation temperature: 0℃~60℃

Note: the DSI LCD is only included in the ESP32-P4-POE-ETH-KIT-B

Highly integrated and powerful performance

Adopts ESP32-P4 Module, onboard 32MB Nor Flash

Two power supply methods

Supports both PoE* and USB Type-C power supply

Note: the PoE module is required.

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply In Only One Ethernet Cable

Note: the PoE module is optional, and the switch in the picture above is NOT included.

Documentations:

• Product Wiki

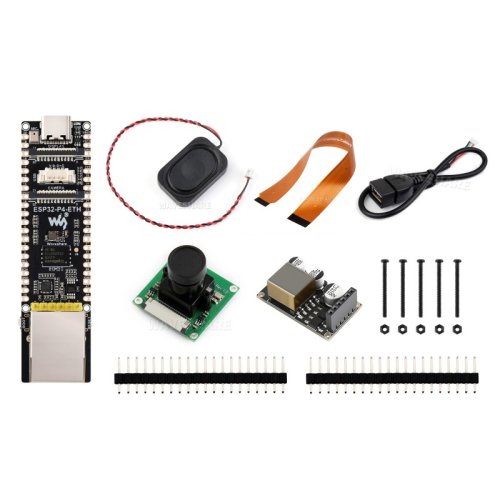

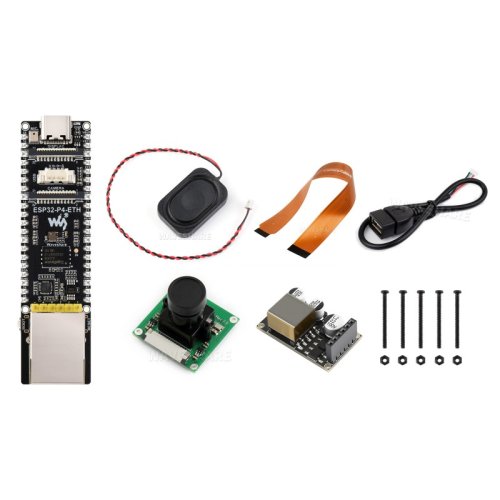

Package Includes:

• 1 x ESP32-P4-ETH
• 1 x PoE module
• 1 x Screws pack
• 1 x 8Ω 2W speaker
• 1 x Pi5-Camera-Cable-200mm
• 1 x FFC 15PIN cable
• 1 x RPi Camera (B)
• 1 x MX1.25 4PIN to USB cable
• 2 x 20PIN header

                    (OR)

• 1 x ESP32-P4-ETH-M
• 1 x PoE module
• 1 x Screws pack
• 1 x 8Ω 2W speaker
• 1 x Pi5-Camera-Cable-200mm
• 1 x FFC 15PIN cable
• 1 x RPi Camera (B)
• 1 x MX1.25 4PIN to USB cable
