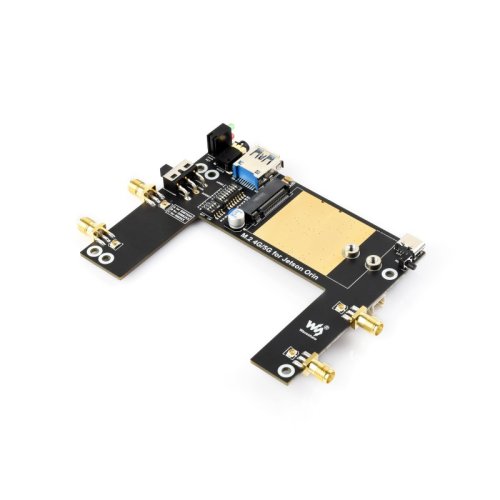

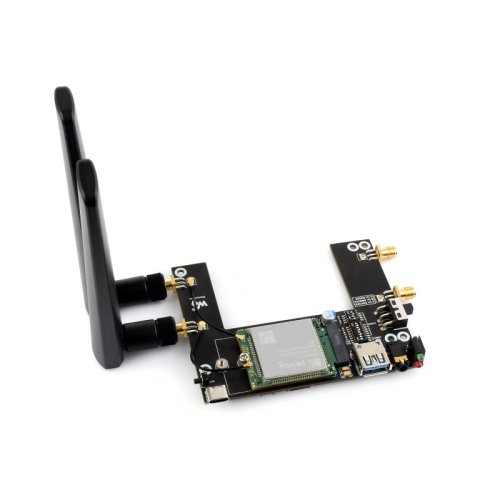

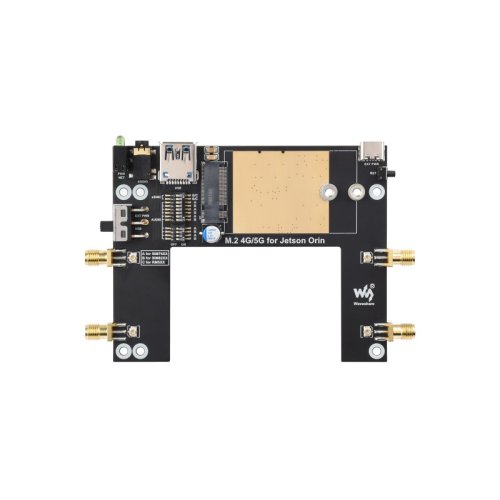

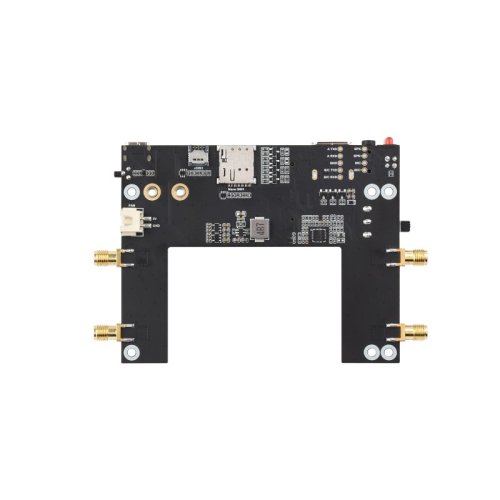

4G Module Expansion Board Designed For Jetson Orin, Includes SIM7600G-H-M.2 4G Module, Supports 4G / 3G / 2G Communication And GNSS Positioning, Global Coverage

4G module for Jetson Orin

Equipped with a high-performance SIM7600G-H-M.2 4G global module

Supports 4G / 3G / 2G communication and GNSS positioning, global band support

Features:

• Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
• GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
• USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 4G network
• Onboard standard M.2 B KEY slot and module selection switches, compatible with SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules
• 4 x SMA antenna connectors, easy to install the antennas
• Reserved UART solder pads for convenient data transmission and other functions with certain modules
• Onboard audio interface and audio decoding chip, enabling voice operations such as making calls on SIMXXX series modules
• Onboard power switch, reset button, and LED indicator for convenient power control and status monitoring
• Onboard high-efficiency power supply circuit, up to 3A output current

Global band 4G/3G/2G support

• LTE Cat-4: up to 150Mbps (downlink) / 50Mbps (uplink)
• 3G (HSPA+): up to 42Mbps (downlink) / 5.76Mbps (uplink)
• 2G (GPRS/EDGE): up to 236.8Kbps (downlink) / 236.8Kbps (uplink)

Multi system support, easy to use

Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port and simple configuration, the high speed 4G network connection would be ready to use

Connection examples

for Jetson Orin Nano and Jetson Orin NX, use the purpose-made USB adapter;

for Windows PC, Jetson Nano series, Raspberry Pi 5 / 4B / 3B+, and CM5 / CM4 series, use the USB dual-plug cable

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.

for reference only, the Raspberry Pi 5, CM5 Module, CM5, Jetson Nano Kit, and Jetson Orin Kit are not included, please refer to the package content for detailed part list.

Multi Positioning support

Supports GPS, GLONASS, BeiDou, Galileo, QZSS, and LBS base station positioning

Cloud Communication

Phone Call & SMS support

allows using AT commands to make phone call via Audio jack or send SMS

Installation Introduction:

Note: for reference only, please refer to the package content for detailed part list

Outline Dimensions:

Documentations:

• Product Wiki

Package Includes:

• 1 x Jetson Orin M.2 4G / 5G expansion board
• 1 x SIM7600G-H-M.2
• 2 x  4G antenna
• 1 x SMA protective cap (5PCS)
• 1 x IPEX1 to SMA adapter cable ~10cm
• 1 x IPEX1 to IPEX4 adapter cable ~5cm (2PCS)
• 1 x Screws pack
• 1 x GPS External Antenna (C)
• 1 x Dual plug USB3.0 Type-A cable
• 1 x Heatsink
• 1 x USB 3.0 Adapter (C)
• 1 x Screwdriver
