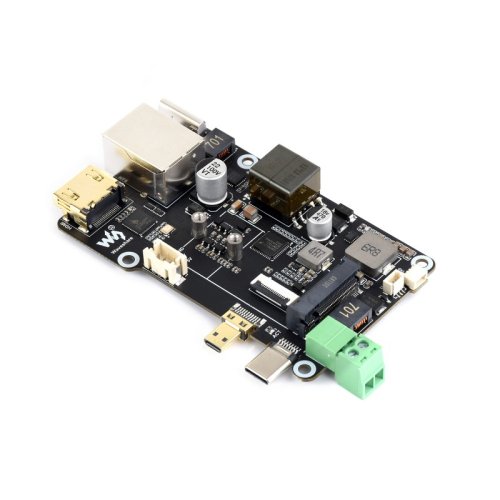

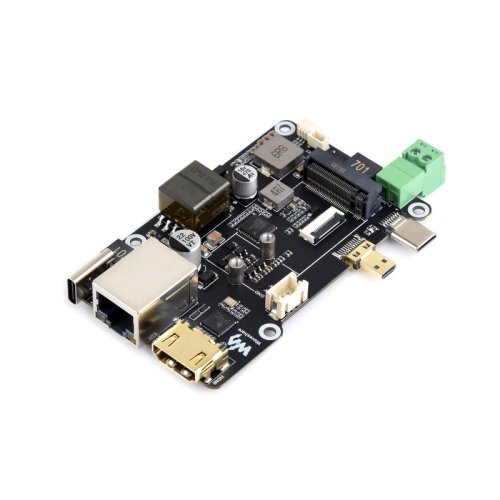

PCIe To M.2 Multifunctional PoE Adapter:

Supports Raspberry Pi 5, 4K Output

Onboard 2.5G PoE Ethernet port, supports NVMe Protocol M.2 Solid State Drive,

High-Speed Reading / Writing, Improves Working Efficiency

Connecting to Pi 5 via 16PIN Cable:

Based on 16PIN PCIe Interface of Raspberry Pi 5, expanding to an M.2 M KEY slot

and an RJ45 Ethernet port

for reference only, please refer to the Package Content for detailed part list

High-Performance Ethernet Controller:

Onboard original RTL8125 high-performance 2.5G Ethernet controller, supports Raspberry Pi OS, Driver-free, Plug and Play

NVMe Solid State Drives Support:

Compatible With 2230 / 2242 Size M.2 Solid State Driv:es

Supports Gen2 Mode, Supports Booting Pi 5 From Solid State Drive

Supports network connection:

and PoE power supply

providing both network connection and power supply for your Raspberry Pi in one cable

for reference only, the Raspberry Pi 5 and switch are NOT included.

Easy to connect the HDMI screen:

Converts Micro HDMI port to HDMI female port for easier connection

for reference only, please refer to the Package Content for detailed part list

Three Power Supply Methods:

Supports Power Supply via Type-C port, 7 ~ 24V Screw Terminal, and PoE Ethernet port

Supports 4K Outputs:

Assembly Example:

 for reference only, please refer to the Package Content for detailed part list

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

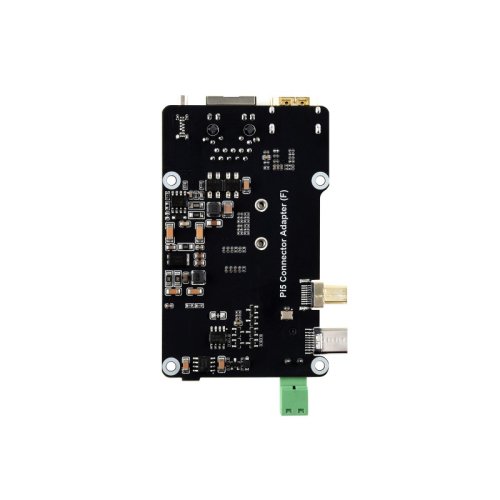

• 1 x Pi5 Connector Adapter (F)
• 1 x SH1.0 3PIN cable 100mm
• 1 x SH1.0 3PIN cable (opposite) 100mm
• 1 x 16PIN FFC cable 100mm (same direction)
• 1 x Screws pack

Write a review

Please login or register to review

Waveshare 35254 PCIe To M.2 Multifunctional Adapter, 4K Output, Original RTL8125 2.5GbE Ethernet Controller, Supports Raspberry Pi OS, Driver-free, Supports Networking And PoE Power Supply

• Brand:: Waveshare
• Product Code: :WaveS-35254-Multifunctional-Adapter
• Reward Points: :41
• Availability: :In Stock

• रo 4,094.00

• Price in reward points: 4094

• ---

• 5 or more रo 4,062.00
• 10 or more रo 4,029.00
• 20 or more रo 3,996.00
• 40 or more रo 3,963.00
