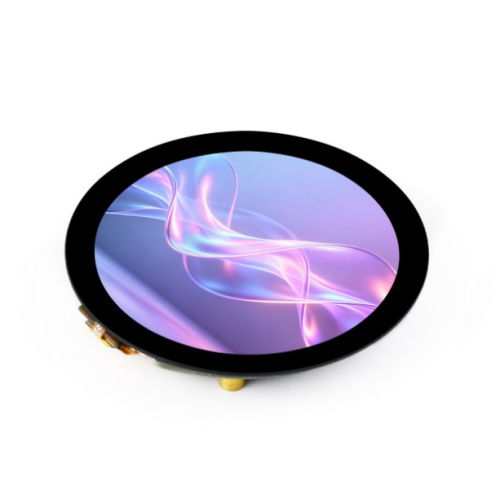

1.85inch Touch LCD Display Module:

Built-in ST77916 display driver chip and CST816S capacitive touch control chip

Comes with examples for ESP32, Raspberry Pi Pico, and STM32, etc.

                   Size                               Resolution                      Display Color                   Display Color

                1.85"                                360 × 360                                262K                                    IPS

        Display Driver IC             Display Interface             Touch Driver IC               Touch Interface

               ST77916                               QSPI                              CST816S                                I2C

Features:

• 360 × 360 resolution, 262K colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime
• Built-in ST77916 display driver chip and CST816S capacitive touch control chip, using QSPI and I2C communication respectively, minimizes the required IO pins, supports controller boards like ESP32-S3 / Raspberry Pi Pico / STM32, etc
• Comes with online development resources and manual (examples for ESP32 / Raspberry Pi Pico / STM32, etc).

Specifications:

• OPERATING VOLTAGE : 3.3V / 5V : RESOLUTION : 360 × 360 pixels
• BRIGHTNESS : 450 cd/㎡ : CONTRAST : 1200:1
• DISPLAY DRIVER IC : ST77916 : TOUCH DRIVER IC : CST816S
• DISPLAY INTERFACE : QSPI : TOUCH INTERFACE : I2C
• DISPLAY PANEL : IPS : TOUCH TYPE : Capacitive touch
• DISPLAY SIZE : 45.68 × 45.68 (mm) : DISPLAY COLOR : 262K
• MODULE SIZE : 55 × 55 (mm)

Onboard Voltage Translator:

Compatible With 3.3V / 5V Power Input

QSPI and I2C Control Interfaces:

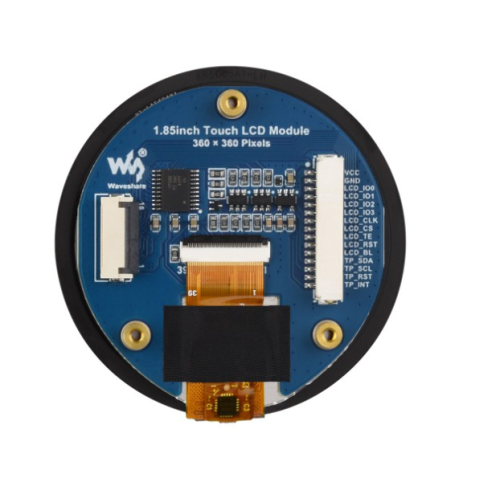

Onboard 15PIN GH1.25 and 18PIN FPC connectors for host board connection

• PIN : Description : 15PIN Pin No. : 18PIN Pin No.
• VCC : Power (3.3V / 5V input) : 1 : 1
• GND : Ground : 2 : 3
• LCD_IO0 : QSPI : data pin 0 : 3 : 5
• LCD_IO1 : QSPI data pin 1 : 4 : 6
• LCD_IO2 : QSPI data pin : 2 : 5 : 7
• LCD_IO3 : QSPI data pin 3 : 6 : 11
• LCD_SCLK : QSPI clock pin : 7 : 4
• LCD_CS : LCD chip selection, low active : 8 : 9
• LCD_TE : LCD tearing effect synchronization signal : 9 : 10
• LCD_RST : LCD reset pin, low active : 10 : 8
• LCD_BL : LCD backlight pin : 11 : 2
• TP_SDA : Touch panel data pin : 12 : 14
• TP_SCL : Touch panel clock pin : 13 : 13
• TP_RST : Touch panel reset pin, low active : 14 : 12
• TP_INT : Touch panel interrupt pin : 15 : 15

Usage Examples:

Connecting with ESP32-S3-DEV-KIT

Connecting with ESP32-S3-LCD-Driver-Board:

for reference only, please refer to the package content for the detailed part list.

Outline dimensions:

Resources and Services:

Documentations:

• Wiki

Package Includes:

• 1 x 1.85inch Touch LCD Module
• 1 x GH1.25 15PIN cable
• 1 x FFC 18PIN 0.5mm pitch cable 200mm (same direction)
