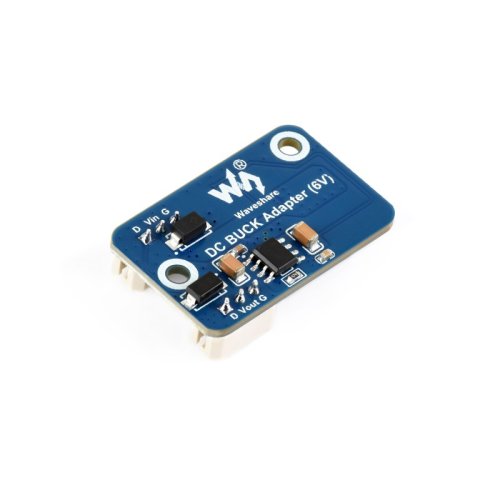

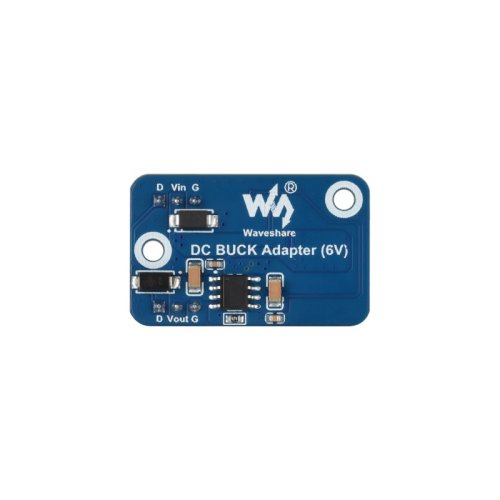

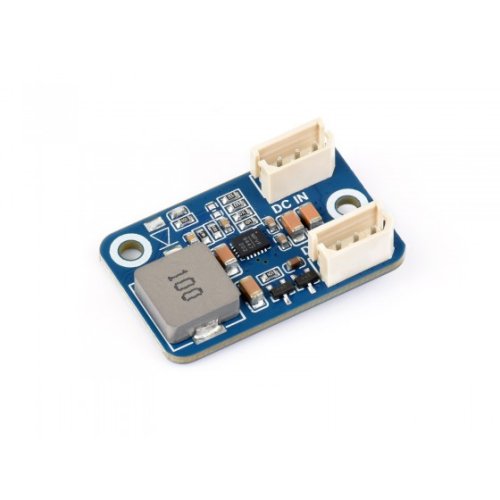

Serial Bus Servo DC Buck Adapter:

7.2V / 6V Buck Regulator Designed for Serial Bus Servos

Version Options:

   DC BUCK Adapter (6V)                                        DC BUCK Adapter (7.2V)

Features At A Glance:

• 7.2V buck regulator, suitable for the servos such as SC15 Servo
• 6V buck regulator, suitable for the servos such as SC09 Servo
• Mini size, more space-saving, easy to integrate into the projects
• 9 ~ 36V wide voltage input for more flexible project power selection
• Simply connect it in series in the servo circuit to use

Specifications:

• INPUT VOLTAGE : DC 9 ~ 36V
• OUTPUT VOLTAGE : DC 7.2V / 6V
• INTERFACE : SC/ST series servo 5264-3P header
• DIMENSIONS : 21.50 × 34.00mm
• MOUNTING HOLE SIZE : 2.70mm
• PEAK CURRENT : 3A

Application Examples:

Working With General Driver for Robots driver board, More Flexible for Project Power Selection, Suitable for Serial Bus Servos Such As SC15 Servo and SC09 Servo

DC BUCK Adapter (7.2V) connecting with SC15 Servo        DC BUCK Adapter (6V) connecting with SC09 Servo

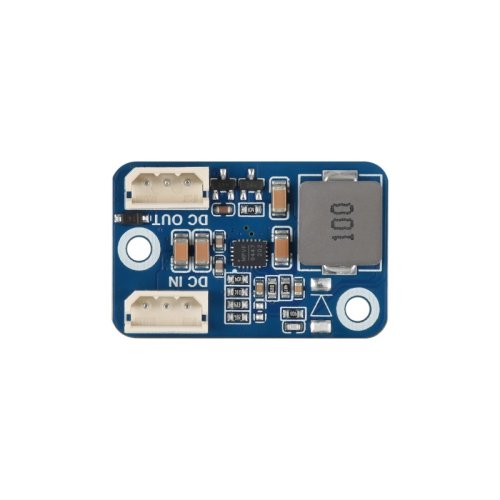

What's Onboard:

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

DC BUCK Adapter (7.2V)

• 1 x DC BUCK Adapter (7.2V)
• 1 x 30cm servo cable

                    OR

DC BUCK Adapter (6V)

• 1 x DC BUCK Adapter (6V)
• 1 x 30cm servo cable
