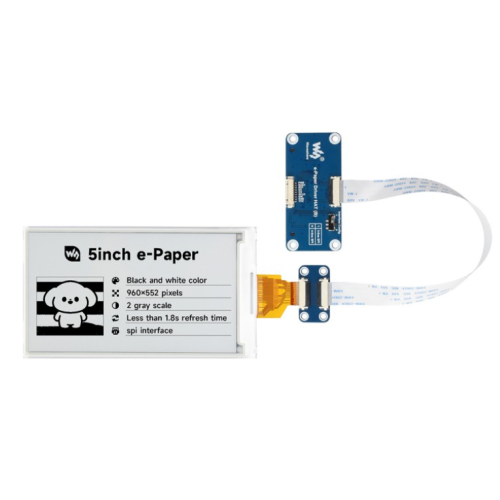

5″ e-Paper display:

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list

Version Options:

• 5inch e-Paper raw display, without driver board
• 5inch e-Paper HAT with e-Paper Driver HAT

Features at a glance:

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Series / Arduino / STM32 / ESP32)
• Optional for e-Paper Driver HAT:
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson series boards
• Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
• Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications:

• operating voltage : Raw display: 3.3V : display color : Black/White
• with driver HAT: 3.3V/5V
• interface : 3-wire SPI, 4-wire SPI : grey scale : 2
• outline dimensions : Raw display: 126.38 × 71.19 × 0.79 (mm) : partial refresh time : 0.7s
• e-Paper Driver HAT: 30.50 × 65.00 (mm) : full refresh time : 1.8s
• display size : 110.59 × 62.65 (mm) : refresh power : <50mW
• DOT PITCH : 0.1833 × 0.1833 (mm) : standby current : <0.01uA (almost none)
• RESOLUTION : 960 × 552 pixels : viewing angle : >170°

Advantages of EINK:

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

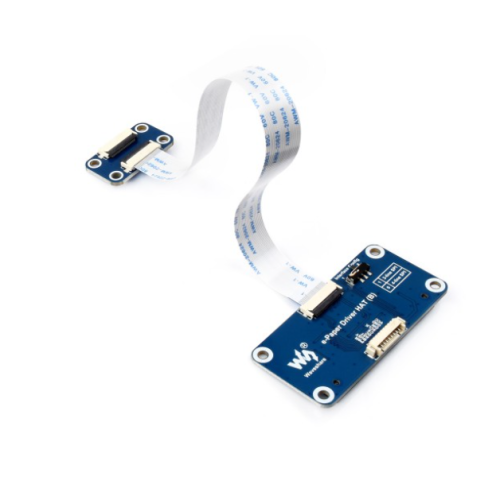

Optional for e-Paper Driver HAT:

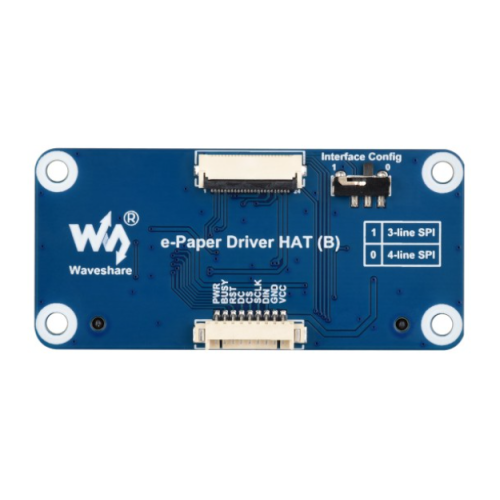

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi / Arduino / STM32 / ESP32

• PWR : Power control pin
• BUSY : Busy status output
• RST : External reset, low active
• DC : Data / Command selection (high for data, low for command)
• CS : SPI chip selection, low active
• SCLK : SPI CLK pin
• DIN : SPI MOSI pin
• GND : Ground
• VCC : 3.3V/5V

Onboard Voltage Translator:

Compatible With 3.3V / 5V MCUs

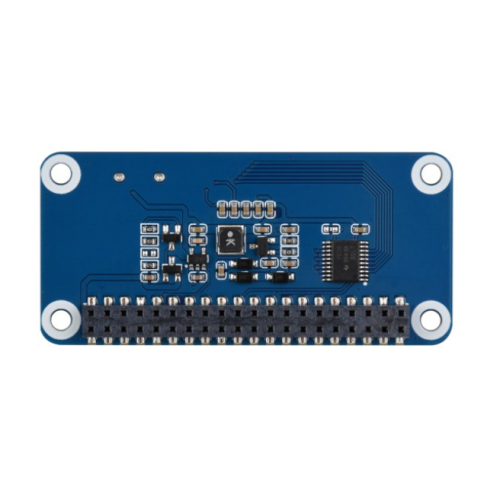

Standard Raspberry Pi 40PIN GPIO header:

compatible with Raspberry Pi series boards, Jetson series boards

Conneting with Raspberry Pi Zero                                          Conneting with Jetson series board

for reference only, the Raspberry Pi and Jetson series board in the pictures are NOT included.

Application examples:

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions:

5inch e-Paper

e-Paper Driver HAT

Resources and Services:

Documentations:

• WIKI

Package Includes:

• 5inch e-Paper
• 1 x 5inch e-Paper

                    OR

• 5inch e-Paper HAT
• 1 x 5inch e-Paper HAT
• 1 x MX1.25 9PIN cable ~20cm
• 1 x Screws pack
