Industrial USB TO 8CH TTL Converter, USB To UART, Multi Protection Circuits, Multi Systems Support, USB To TTL Adapter

• Industrial USB TO 8CH TTL UART CONVERTER
• Stable Transmission | Multi Devices | Multi Systems

Features At A Glance:

• Extending USB to 8CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel
• Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
• Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication
• Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

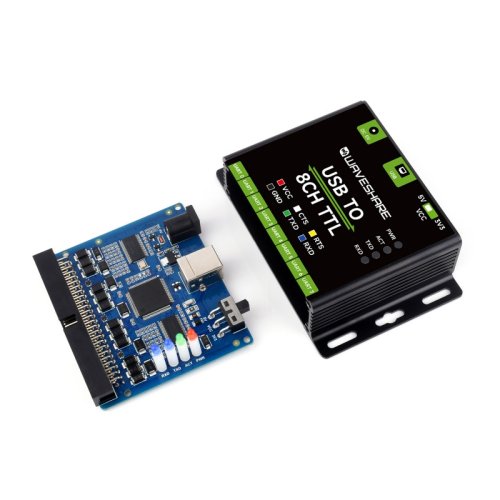

• Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
• 4 LEDs for indicating the power and transceiver status

Specifications:

Multiple Protection, Safe And Stable

• Onboard self-recovery fuse and protection diodes, provide over-current/over-voltage proof, improve shock proof performance
• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
• Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

Application Examples

Suitable For Industrial/Office Conditions With Strict Requirements For Operating Environment And Devices

Extending USB to 8CH TTL UART

• Industrial chip, 8CH TTL, allows concurrent and independent communication

Small size, easy installation

• Flexible installation, suitable for sorts of devices to extend TTL interfaces

Reversed mounting holes

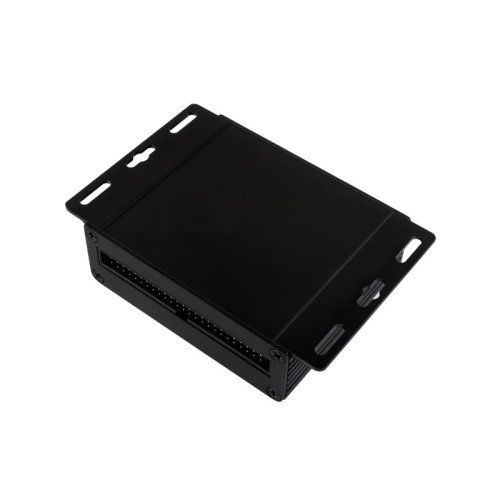

• Easy wall mount, industrial alloy enclosure, solid and durable

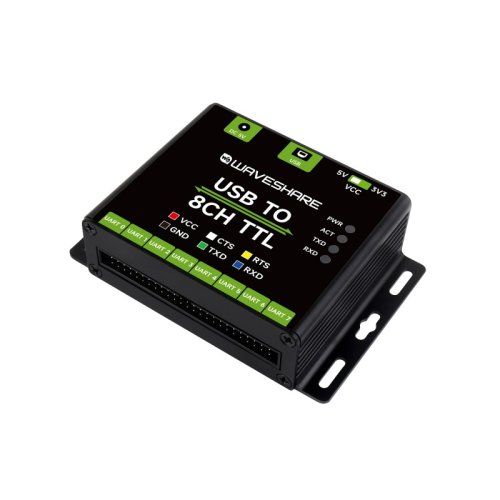

Interface Introduction:

Indicators   Description

PWR             Power indicator, lights up red when there is USB connection and voltage is detected

ACT              Status indicator, lights up green when the driver is detected

TXD              TX indicator, lights up when the USB port sends data

RXD              RX indicator, lights up when the device ports send data back

Pinout Definition:

VCC          5V or 3.3V output, configured by switch

GND           Ground

TXD          Connecting to MCU.RXD

RXD          Connecting to MCU.TXD

RTS                  Connecting to MCU.CTS

CTS                  Connecting to MCU.RTS

Outline Dimensions:

Documentation:

• Wiki

Package Includes:

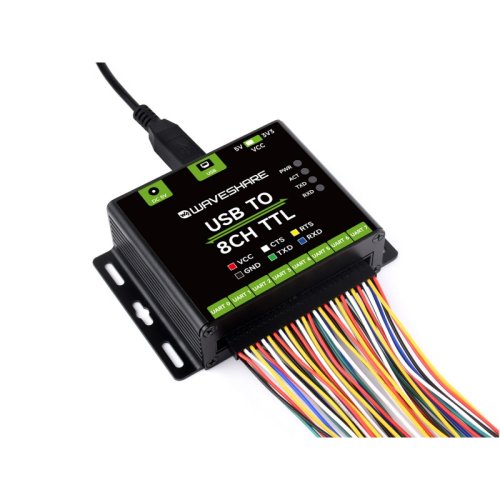

• 1 x USB TO 8CH TTL
• 1 x USB cable (~1.2m)
• 1 x 50PIN squid wire
