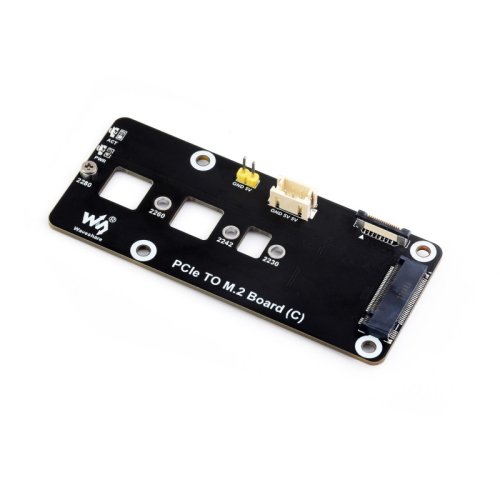

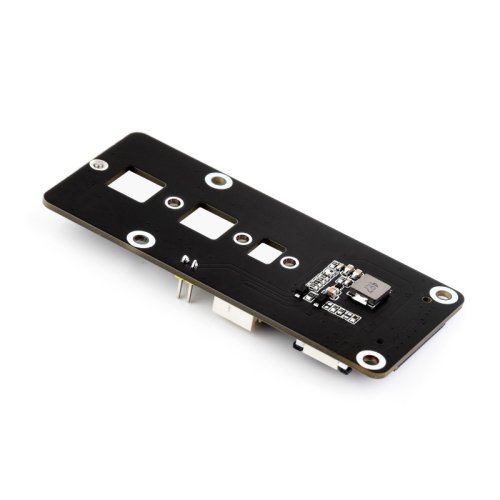

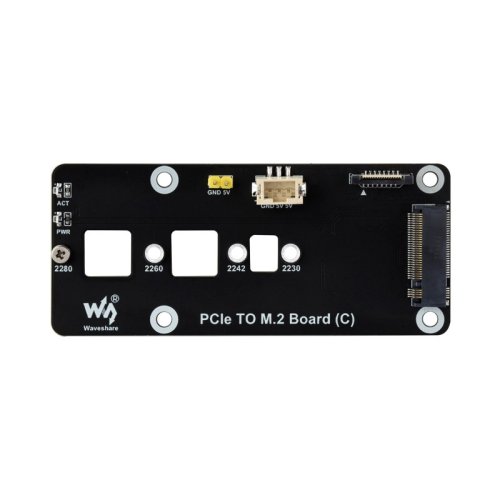

PCIe To M.2 Adapter Board (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, With Transparent Acrylic Mounting Plate, Side-Mounting Solution

• PCIe To M.2 Board (C)
• Designed for Raspberry Pi 5
• Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency

Connecting To PI5 Via 16PIN Cable

• Based On 16PIN PCIe Interface Of Raspberry Pi 5

 for reference only, please refer to the Package Content for detailed part list

Comes With Transparent Acrylic

Mounting Plate

Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5

for reference only, please refer to the Package Content for detailed part list

NVMe Drive Protocol Support

• Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
• Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

Multiple Power Supply Methods

• Supports Power Supply Via PCIe Cable Or 3PIN Cable

 Note: uses PCIe cable for power supply by default, you can add 3PIN cable in cases of insufficient power

• Onboard Dual LED Indicators

• Easy To Monitor The Working Status

Outline Dimensions:

Documentation:

• Wiki

Package Includes:

• 1 x PCIe TO M.2 Board (C)
• 1 x Transparent acrylic mounting plate
• 1 x PH2.0 3PIN cable ~5cm
• 1 x PCIe-Cable-50mm
• 1 x Standoff pack
