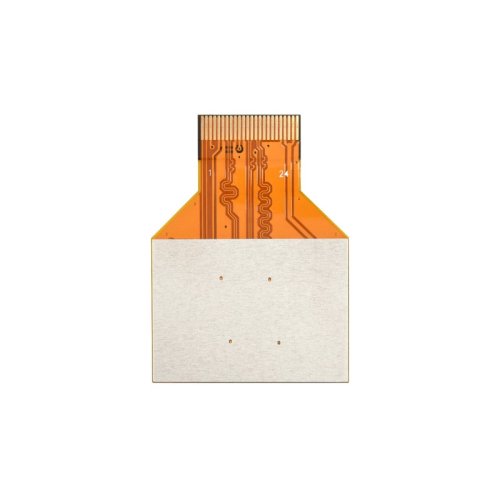

CSI Camera Adapter for RDK X3
- 24PIN To 15PIN, Supports RDK X3 Development Board
- Suitable for adapting Raspberry Pi CSI interface cameras
Supports RDK X3 Development Board
Suitable for adapting OV5647, IMX219, IMX477 and other camera modules with Raspberry Pi CSI interface
- for reference only, the RDK X3, CSI camera, and FFC cable are NOT included.
- This product does not support the Raspberry Pi HQ Camera.
Supported Camera Models
| Model | IR filter | Aperture | Focal Length (mm) | Field of view (diagonal) | Dimensions (mm) | Features |
|---|---|---|---|---|---|---|
| 5MP OV5647 camera modules | ||||||
| RPi Camera (B) | integrated | 2 | 6 | 60.6° | 32×32 | - |
| RPi Camera (D) | N/A | 2.8 | 3.4 | 66° | 25×24 | - |
| RPi Camera (E) | N/A | 2.8 | 3.21 | 69.8° | 25×24 | - |
| RPi Camera (F) | N/A | 2 | 3.6 | 50° | 25×24 | - |
| RPi Camera (G) | integrated | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (H) | N/A | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (I) | integrated | 2 | 1.55 | 185° | 32×32 | - |
| RPi Camera (M) | integrated | 2 | 0.87 | 200° | 25×24 | - |
| RPi FPC Camera | integrated | 2.8 | 3.21 | 69.8° | 300×16 | Mini Size |
| RPi FPC Camera (B) | integrated | 2.4 | 3.89 | 72.9° | 35×16 | Mini Size |
| RPi IR-CUT Camera | integrated | 2 | 3.6 | 50° | 31×32 | IR-CUT |
| RPi IR-CUT Camera (B) | integrated | 1.4 | 8 | 40° | 31×32 | IR-CUT |
| OV5647-70 5MP OIS Camera | N/A | 2.8 | 3.2 | 70° | 19×19 | Optical image stabilization |
| 8MP IMX219 camera modules | ||||||
| IMX219-77 Camera | integrated | 2 | 2.85 | 79.3° | 25×24 | - |
| IMX219-77IR Camera | N/A | 2 | 2.85 | 79.3° | 25×24 | - |
| IMX219-120 Camera | integrated | 2 | 1.79 | 120° | 25×24 | - |
| IMX219-160 Camera | integrated | 2.35 | 3.15 | 160° | 25×24 | - |
| IMX219-160IR Camera | N/A | 2.35 | 3.15 | 160° | 25×24 | - |
| IMX219-160 IR-CUT Camera | integrated | 2.7 | 1.75 | 160° | 79.7×30.4 | IR-CUT |
| IMX219-170 Camera | integrated | 2.4 | 2.2 | 170° | 32×32 | - |
| IMX219-200 Camera | integrated | 2 | 0.87 | 200° | 25×24 | - |
| 12.3MP IMX477 camera modules | ||||||
| IMX477 12.3MP Camera | integrated | - | - | - | 38×38 | - |
| IMX477-160 12.3MP Camera | integrated | 2.2 | 2.75 | 160° | 25×24 | - |
product show:
Outline dimensions:
Documentation:
Package Includes:
- 1 x X3 Pi CSI Adapter
Waveshare 23363 CSI Adapter for RDK X3 Development Board, 24PIN To 15PIN CSI Adapter Board
- Brand: Waveshare Electronics
- Product Code: NR-WaveS-23363-CSI-Adapter
- Reward Points: 4
- Availability: In Stock
- रo 419.00
-
रo 352.00
- Price in reward points: 419
-
- 36 or more रo 416.00
- 72 or more रo 412.00
- 179 or more रo 409.00
- 358 or more रo 406.00
