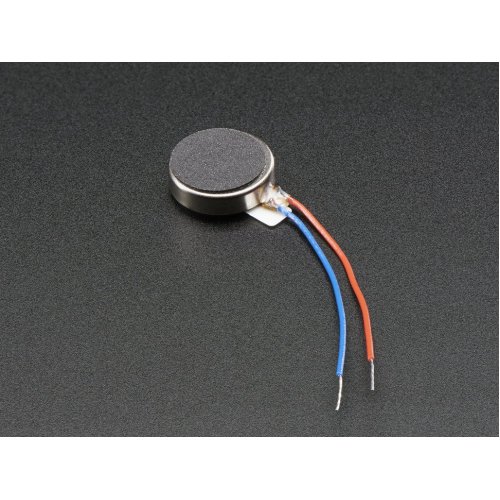

*BZZZZZZZZZZ* Feel that? That's your little buzzing motor, and for any haptic feedback project you'll want to pick up a few of them. These vibe motors are tiny discs, completely sealed up so they're easy to use and embed.

Two wires are used to control/power the vibe. Simply provide power from a battery or microcontroller pin (red is positive, blue is negative) and it will buzz away. Works from 2V up to 5V, higher voltages result in more current draw but also a stronger vibration.

If you want to reduce the current draw/strength (for example, to control it directly from an Arduino pin) try putting a resistor (100 to 1000 ohms) in series. For full power control, a small PN2222 transistor can control a motor easily, some experimentation may be required!
Vibrating Mini Motor Disc (6:47)
Technical Details:
Dimension: 10mm diameter, 2.7mm thick
Voltage: 2V - 5V
5V current draw: 100mA, 4V current draw: 80mA, 3V current draw: 60mA, 2V current draw: 40mA
11000 RPM at 5V
Documentation:
Package Includes:
  • 1 x Adafruit 1201 Vibrating Mini Motor Disc

Write a review

Please login or register to review

Adafruit 1201 Vibrating Mini Motor Disc

  • Brand: Adafruit
  • Product Code:Ada-Vibrating-Mini-Disc
  • Reward Points:2
  • Availability:In Stock
  • रo 247.80

  • Ex Tax:रo 210.00
  • Price in reward points:222

  • 50 or more रo 218.30
  • 730 or more रo 217.12
