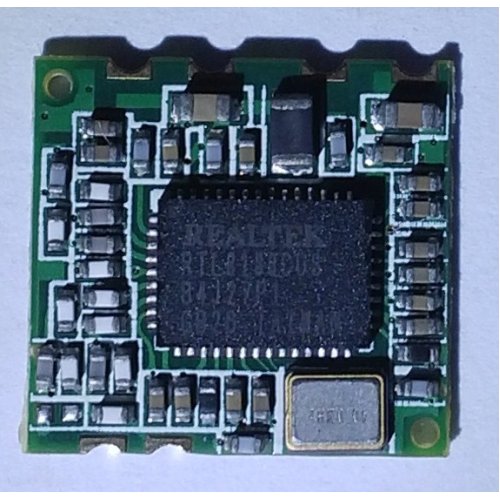

W10 USB WIFI module RTL8188CUS IEEE 802.11n/b/g with speed upto 150 mbps !

Specifictions:
  • Main Chip : Realtek RTL8188CUS
  • Standard : 802.11b/g/n, 802.3, 802.3u
  • Frequency range : 2.4~2.4835 GHz ISM Band
  • Spread Spectrum :
    • IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)
    • IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)
  • Data Transfer Rate : 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps
  • Operation voltage : DC 3.3V
  • Operation current : 95~140mA
  • Interface : USB2.0
  • Modulation Type : OFDM/DBPSK/DQPSK/CCK
  • Channel Number : 14
  • Wireless Tx Power : < 13dBm@11n,< 18dBm@11b,< 14dBm@11g
  • Wireless Rx Sensitivity :
    • 11Mbps: -86dBm@8%
    • 54Mbps: -73dBm@10%
    • 130Mbps:-66dBm@10%
  • Supported OS : Windows 2000,XP32/64,Vista 32/64,Win7 32/64,WIN CE,Linux,Mac,Android…
  • Antenna : External
  • RF Input Impedance : 50 Ω
  • Transmission Range : Indoor 100m(Max.), Outdoor 300m(Max.)

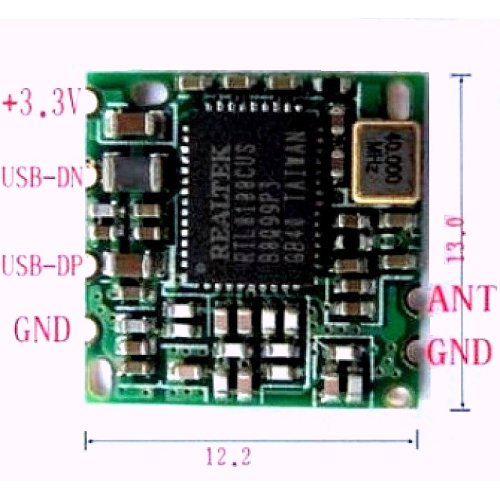

  • Dimension : 13.0*12.2*1.8 mm (L x W x H)
  • Manufacture workmanship : RoHS Compliant

   Warranty: No

Write a review

Please login or register to review

WIFI USB Module RTL8188CUS, IEEE 802.11n/b/g - W10

  • Product Code:PRC-Wifi-Module-RTL8188CUS-W10
  • Reward Points:4
  • Availability:In Stock
  • रo 357.00

  • Ex Tax:रo 357.00
  • Price in reward points:357

  • 40 or more रo 354.00
  • 80 or more रo 351.00
  • 210 or more रo 348.00
  • 415 or more रo 345.00
