• Video Interfaces: LVDS Dual Channel 24-bit with backlight connector; HDMI® connector
• Mass Storage: microSD slot
• Networking: 1 × Gigabit Ethernet connector; 1 × Mini-PCIe slot for WWAN modem modules with on-board microSIM slot
• USB Interfaces:
• 1 × USB 2.0 Host port on Type-A socket
• 1 × USB 3.0 Host port on Type-A socket, shared with USB 2.0 OTG Client
• 1 × USB 2.0 OTG port on micro-AB socket, shared with USB 3.0 Host
• 1 × USB 2.0 Host port on internal connector
• 1 × USB 2.0 Host port on M.2 Socket 1 Key E slot
• 1 × USB 2.0 Host port on Mini-PCIe slot
• Audio: Optional combo TRSS audio connector for Mic In / Stereo Out
• Serial Ports: Optional 4-wire RS-232 / RS-422 / RS-485 configurable serial port on pin header
• Other Interfaces:
• 1 × PCIe x1 lane on M.2 Socket 1 Key E slot
• 1 × PCIe x1 lane on Mini-PCIe slot
• Optional 1 × CAN port on pin header
• 1 × 40-pin connector for I2C, SPI, and GPIO, pinout compatible with Raspberry Pi GPIO connector
• 1 × LED driver connector
• 4-wire configurable FAN connector
• microSIM slot for Mini-PCIe modem
• Debug USB port on micro-AB socket
• MFG connector for JTAG programming of Qseven® module
• Power Supply: 12V DC through USB Type-C connector
• RTC/CMOS: Coin-cell battery holder for CMOS and RTC
• Dimensions: 101.6 × 101.6 mm (4 × 4"), embedded NUC™ compliant
• Operating Temperature: 0°C to +70°C
• Operating Temperature Note: Carrier board components must remain within the specified temperature range during operation and startup. Actual temperature depends on the application, enclosure, environment, and cooling solution.

Package Includes:

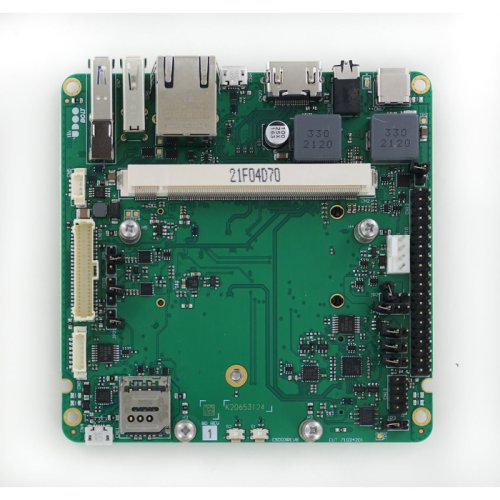

• 1 x UDOO CARRIER-Q7-D03
