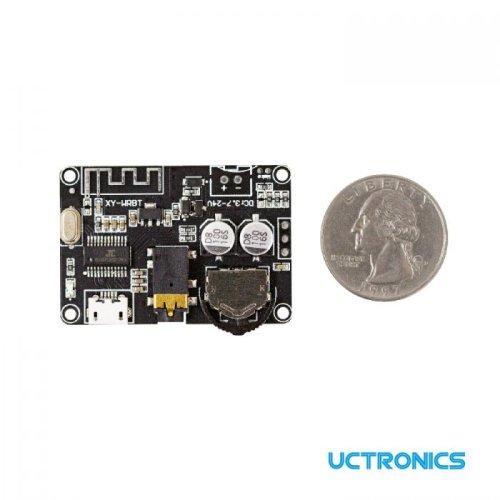

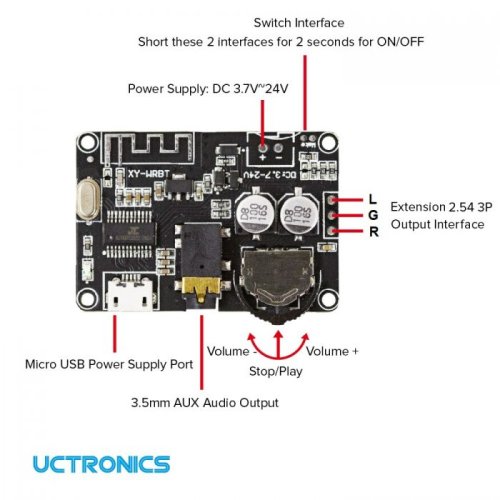

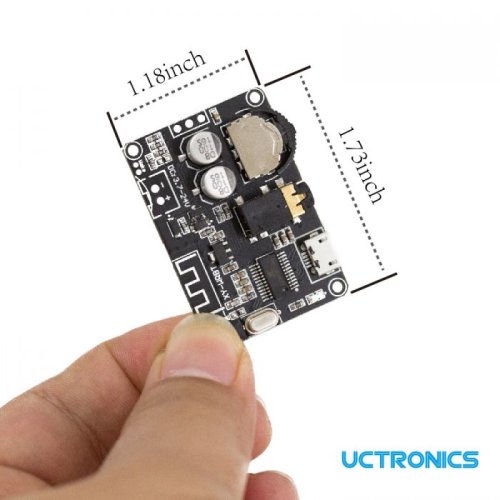

The New Version Of U622601 Bluetooth 5.0: has longer transmission distance and more stable performance in decoding and outputting audio Power Supply: DC 3.7V ~ 24V, via micro USB or extension power supply interface Audio Output: 3.5mm AUX audio output or extension 2.54mm 3P interface Volume Adjustable: turn right the adjust button to increase volume, turn left to decrease volume; press the button to play/stop the audio; Mini and Portable: 1.18"*1.73"mm, suitable for various narrow installation space.
- - Power Supply: DC 3.7-24V
- - Power Input: Micro USB port/DC power terminal
- - Audio Input: Bluetooth
- - Audio Output: 3.5mm AUX socket, 2.54mm 3P audio output expansion terminal.
- - Power Input: Micro USB port/DC power terminal
- - Bluetooth Name: XY-WRBT
- - Effective Bluetooth Transmission Distance: 15 meters/ 49.2 feet.
NOTE
This module is a Bluetooth receiver board, if used for speakers, please connect an amplifier. Otherwise, there will be distortion at high volume.
Package Includes :
- 1 x UCTRONICS U622603 Bluetooth 5.0 Mini Audio Receiver Board

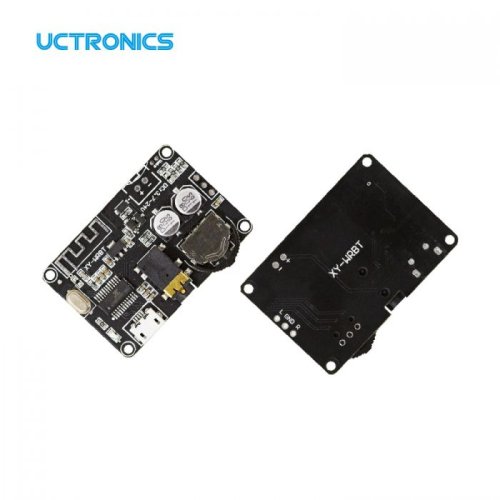

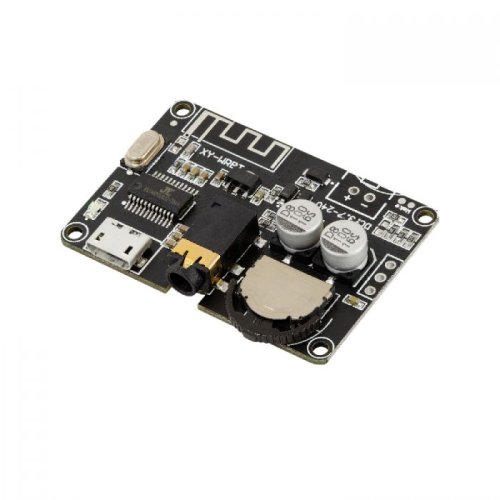

UCTRONICS U622603 Bluetooth 5.0 Mini Audio Receiver Board
- Brand: UCTRONICS
- Product Code:NR-ArdC-Bluetooth-5.0-Mini-Audio-Receiver
- Reward Points:10
- Availability:In Stock
- रo 1,184.72
-
रo 1,037.22
- Ex Tax:रo 879.00
- Price in reward points:1046
-
- 15 or more रo 1,180.00
- 25 or more रo 1,175.28
- 65 or more रo 1,170.56
- 130 or more रo 1,164.66
