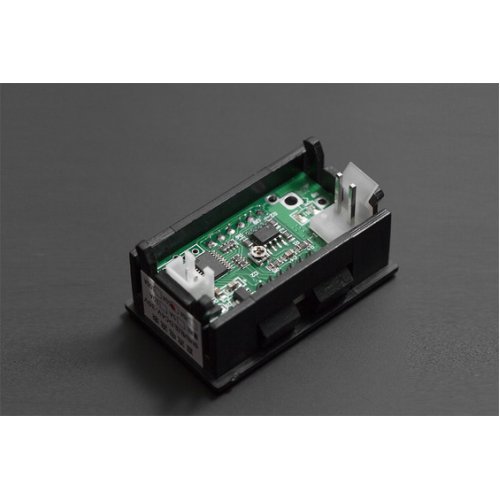

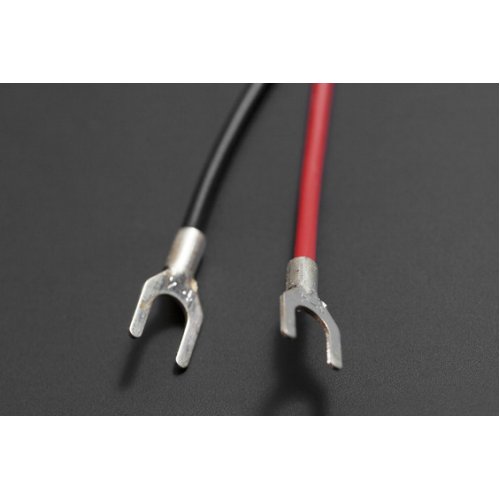

This is a standard LED Current Meter 50A. The biggest feature is that the LED Current Meter have reversed connection protection to prevent from being burnted out. It measures 0-50A with 2% error. Best suitable for current display in the circuit. Just apply four wires without any extra circuit or components, you will get the readings displayed straight away. Easy to use, and good company with robot applications. It has two color LED display to select, green/red.
Warnings: Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter are used common-ground connection. So, the measurement terminal of current meter must be cascaded after loads. It's better that power supply of the current meter is isolated.
Specifications:
- Measure Current: 0-50A DC
- Power supply voltage: 4-30V DC
- Display mode: 3-bit 0.56 Led digital tube
- Accuracy:2%
- Opening dimension: 45.5mm*26.5mm (1.79"*1.04")
- Dimension: 48mm*29mm*21mm (1.89"*1.14"*0.83")
Applications:
- Various circuits
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

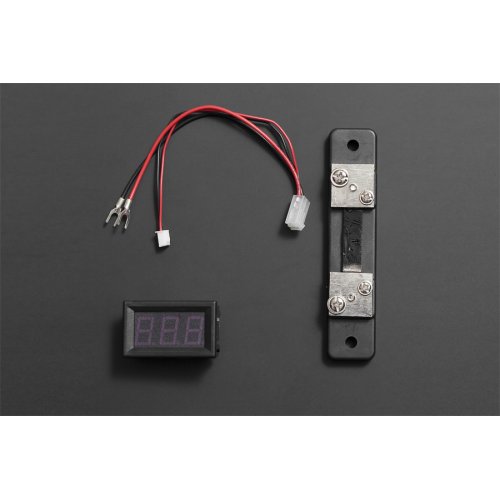

Package Includes:
- 1 x LED Current Meter 10A
- 1 x Shunt
