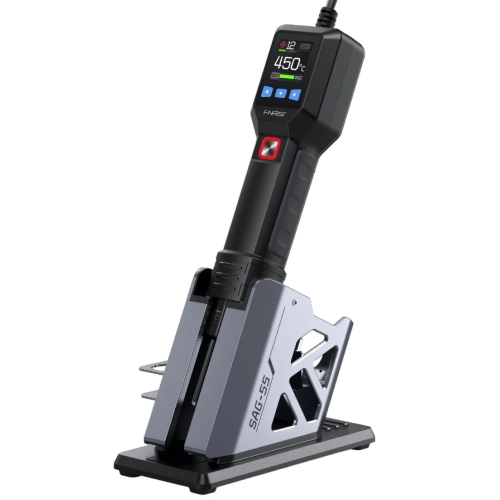

The SAG-55 Intelligent Hot Air Gun is a newly launched portable smart hot air gun designed to meet various application needs. It uses a microcontroller with PID precise temperature control technology, ensuring rapid heating with minimal thermal shock, which extends the lifespan of the heating element. The brushless fan supports adjustable wind speeds from levels 1 to 20, providing low noise, long life, and adaptability to different work environments.

The handle integrates a magnetic sensor that automatically heats up when picked up and cools down into standby mode when returned, making operation simple. The controller and display screen on the handle allow for effortless one-handed adjustment of temperature and wind speed. It also supports three sets of quick temperature/wind speed presets for fast switching.The fast cooling function accelerates cooling, further extending the heating element's lifespan. Real-time monitoring by various sensors ensures the device shuts off heating in case of any abnormalities, ensuring safety. The LCD display and LED indicator clearly show working status and temperature changes.

With its ergonomic handle design for a comfortable grip and compact, portable build, the SAG-55 is the ideal choice for professionals and DIY enthusiasts alike.

Features:

Magnetic Sensor Smart Sleep Stand
Built-in magnetic sensor detects placement angle and triggers sleep mode. Boosted cool air when resting helps cool down faster and protect the heating core.
Brushless Fan Smooth Speed Control
Low-noise, energy-saving brushless fan with long lifespan. Supports 1-20 levels of linear air volume adjustment for smooth and precise desoldering
Hot & Cold Air Switch Faster Cooling Efficiency
Cold air mode with one press for quick cooling. Different colors indicate different temperatures for real-time status monitoring
Three Presets One-Touch Switch
Easily save 3 temperature and air volume settings (100-450℃) for fast switching. Adapt quickly to different soldering needs with just one press

Specifications:

Model
SAG-55
Power Supply (Input Voltage)
100-140V AC (US Plug)
200-240V AC (EU Plug)
Power Parameters

Frequency: 50-60Hz
Max Power: 550W

Temperature Control Range: 100℃-450℃ (212℉-842℉)
Display Screen Size: 1.54-inch LCD (240*240)
Airflow Rate: 80L/min, Adjustable from 1-20 levels
Heating Tube Size: Length 80mm, Diameter 21.6mm (compatible with 850 series nozzles)
Body Dimensions; Handle (excluding nozzle): 260*60*40 mm
Power Adapter: 118*50*30.6 mm
Cable Length:

Handle Silicone Cable: 1.2m
AC Power Cord: 1.2m
