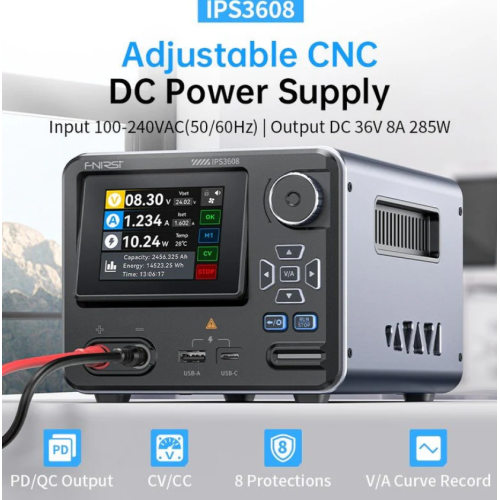

IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to efficiently convert AC power into DC power. It is much more intelligent than traditional power supplies. It has the characteristics of convenient parameter adjustment, high-precision output, strong dynamic response, convenient digital control interface, and multiple electrical protections.

Specifications

Basic Parameters:

• Model : IPS3608 : Screen Material : 2.8-inch color screen
• Backlight : Adjustable backlight brightness : Language : 中文, English
• Product Size : ≈138×214×115mm : Product Weight : ≈1539g

Battery Parameters:

• Input : Voltage Range: 100-240VAC(50/60Hz) : Setting Resolution : Voltage: 0.01V
• Current: 0.001A
• Readback Value Accuracy : Output Voltage: ±(0.3%+3 bits)
• Output Current: ±(0.15%+5 bits) : Operating Environment : -10℃~40℃, 0%~75%RH

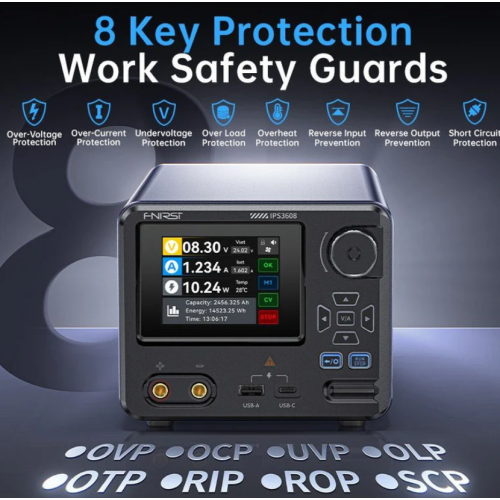

• Protection Mechanism : ◾ Overvoltage protection
• ◾ Overcurrent protection
• ◾ Overpower protection
• ◾ Overtemperature protection
• ◾ Undervoltage protection
• ◾ Short circuit protection
• ◾ Input reverse connection protection
• ◾ Output reverse injection protection : Output : Voltage: DC 0~36V
• Current: 0~8A
• Power: 0~285W
• Load Regulation Rate : ±(0.2%+2 bits)

※Accuracy calculation method: one byte is the minimum resolution, such as 5V, the error is ±(5 x 0.3% + 3 x 0.01), that is, 5 ± 0.045V

Fast Charging Protocol:

• USB-C : PD3.0 : USB-A : HUAWEI FCP
• HUAWEI SCP
• AFC
• QC2.0
• QC3.0

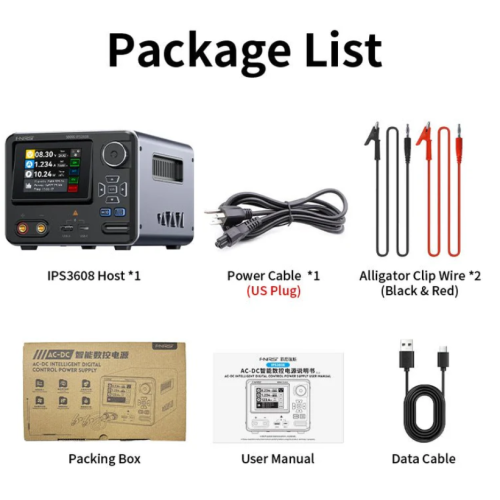

Package List:

• 1 x IPS3608 Host
• 1 x Power Cable (US or EU Plug)
• 2 x Alligator Clip Wire  (Black & Red)
• 1 x Data Cable
• 1 x User Manual
• 1 x Packing Box

Package Includes:

• 1 x IPS3608 Host
• 1 x Power cable
• 2 x Alligator Clip Wire
