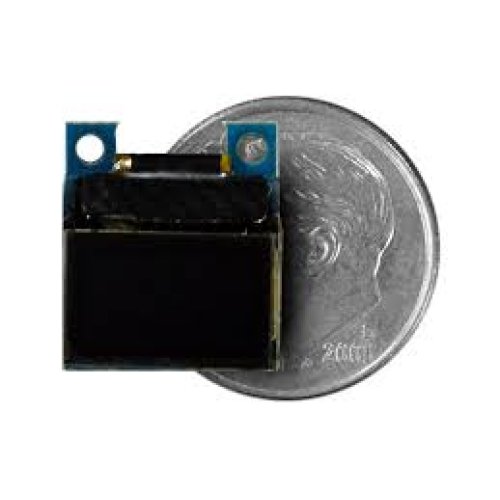

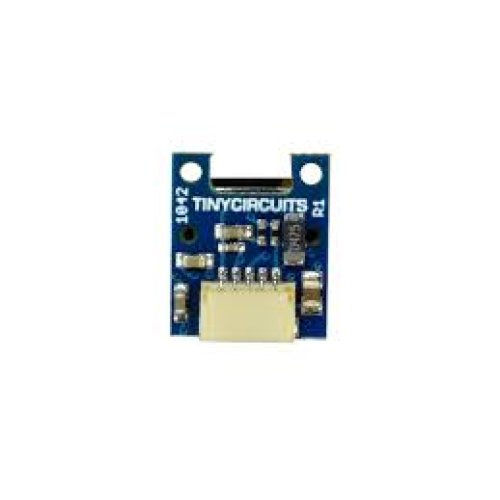

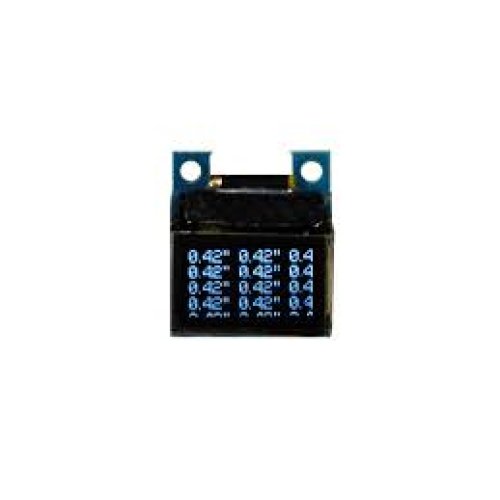

This Wireling lets you display text and images via a 0.42" OLED Display! This 72x40 pixel screen features white pixels on a black background and is controlled via the I²C bus.
The screen uses an internal boost converter to achieve the higher voltages required to drive the screen, so there's no additional external hardware required!
Technical Specification :
HP7240 Specifications :
- 72x40 pixel resolution
- 0.42" size
- White Monochrome
- Internal boost converter
- I²C Interface
- TinyDuino Power Requirements
- Voltage: 3.0V - 5.5V
Pins Used :
- A5/SCL - I2C Serial Clock line
- A4/SDA - I2C Serial Data line
Dimensions :
- 14mm x 12mm (0.551 inches x 0.472 inches)
- Max Height (from the lower bottom of Wireling to upper top Wireling Connector): 5.00mm (0.197 inches)
0.96" OLED Screen Wireling :
- This Wireling lets you display text and images via a 0.96" OLED Display! This 128x64 pixel screen features white pixels on a black background and is controlled via the I²C bus.
- The screen uses an internal boost converter to achieve the higher voltages required to drive the screen, so there's no additional external hardware required!
Technical Specification :
- ER- OLED0.96-1W Specs
- 128x64 pixel resolution
- 0.96" size (measured diagonally)
- White Monochrome
- Internal boost converter
- I²C Interface
- TinyDuino Power Requirements
- Voltage: 3.0V - 5.5V
Pins Used :
- A5/SCL - I2C Serial Clock line
- A4/SDA - I2C Serial Data line
Dimensions :
- 27mm x 21mm (1.06 inches x 0.827 inches)
- Max Height (from lower bottom of Wireling to upper top Wireling Connector): 5.00mm (0.197 inches)
Notes :
- You can also use this shield without the TinyDuino – by clipping the connector off the opposite end and soldering the wires to another board, you can use it with the microcontroller or dev board of your choosing!
- 5-Pin Wireling cables not included and sold separately.
Package Includes :
1 x 0.42"/0.96" OLED Screen Wireling
0.42 inch / 0.96 inch OLED Screen Wireling
- Brand: TinyCircuits
- Product Code:TinyC-OLED-Wireling
- Reward Points:7
- Availability:In Stock
-
रo 802.40
- Ex Tax:रo 680.00
- Price in reward points:680
-
- 20 or more रo 795.32
- 40 or more रo 788.24
- 90 or more रo 781.16
