Meet Thermal Master P3, the Best Focusing Thermal Camera of 2025.

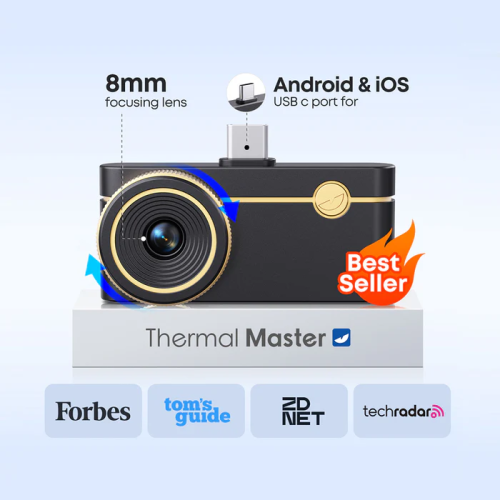

Its 8mm manual focusing lens (8mm–80m) makes it perfect for everything from PCB diagnostics to building inspections.
Equipped with a 512×384 IR resolution VOx 256×384 @12μm sensor and RazorX Thermal Technology, it delivers sharper images and smarter detection.
Dual iOS & Android (v15+) compatibility ensures seamless operation, while the compact full-metal body withstands tough environments with professional durability and portability.

Specifications:

Detector: Vox 256x192 @12μm
X³IR™ Resolution: 512x384
Measurement Range: -4℉~1122℉（-20℃~600℃）
Temp Accuracy: ±2℃ or ±2%
NETD：＜35mk@25℃
Focal Length：4.3mm
Focusing Mode：Macro & Manual Focus Lens
Application Scenarios：Circuit board/Electrical/ Industrial/HVAC/ Home/ Automotive Inspections
Digital Zoom：15×
Frame Rate：25Hz
Infrared Core：Thermal Master High-Sensitivity Sensor
RazorX™：Ultra-Clear algorithm
Power Consumption：0.32W
FOV：40°x30.2°
Size (LxWxH)：59*27*17.2 mm
Material：Aerospace Alloy Body

Superior Clarity

Other Features:

Wide Temperature Range: From -4℉ to 1112℉, the P3 thermal camera delivers ±2°C accuracy for precise PCB checks, circuit repair, and equipment inspections.
Multi-Mode Temp & Alarm: This thermal imaging camera supports point, line and area temperature measurement, with alarms to prevent overheating or low-temp faults.
App Name: Temp Master: Downloads here
12 Pro Palettes: The P3 thermal imaging camera offers 12 palettes, making PCB thermal imaging and circuit repair more intuitive.
Free Data Analysis: Generate free reports from the P3 electronic thermal camera, perfect for PCB diagnostics and equipment analysis.
Eco-Friendly: 0.32W low consumption

BUILT FOR MOBILITY

Product Specifications:

Model: P3
Detector: Vox 256x192 @12μm
X³IR™ Resolution: 512x384
Measurement Range: -4℉~1112℉（-20℃~600℃）
Temp Accuracy: ±2℃ or ±2% of the reading
NETD: ＜35mk@25℃
Focal Length: 4.3mm
Focusing Mode: Macro & Manual Focus Lens
Curcuit board testing: Detect 1mA PCB leakage
Application Scenarios: Circuit board/Electrical/ Industrial/HVAC/ Home/ Automotive Inspections
Compatibility: Connect to iPhone®, iPad®, Android™ Phones and PCs
iPhone 8-16: Android 7.0 over system
Digital Zoom: 15×
Frame Rate: 25Hz
Infrared Core: Thermal Master High-Sensitivity Sensor
RazorX™: Ultra-Clear algorithm
IQ+ Precision Temp: Dynamic compensation algorithm for temperature drift with intelligent sensing of ambient temperature
Isotherm: A setting that highlights a specific range of temperatures within the thermal image, making them stand out with a distinct color.
Power Consumption: 0.32W
FOV: 40°x30.2°
Size (LxWxH): 59*27*17.2 mm
Material: Aerospace Alloy Body
Plug: Plug extended by 2mm, compatible with most phone cases
