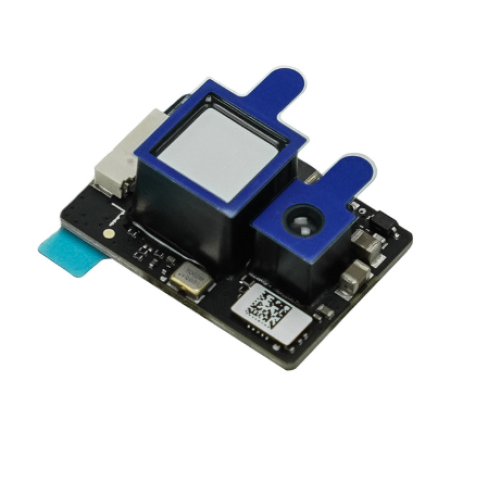

Upgrade drone or robot with the Benewake TFS20-L ToF LiDAR sensor. Get precise, centimeter-level distance measurement up to 20 meters, even in challenging 100Klux direct sunlight. Weighing just 1.35g and smaller than a thumbnail, it delivers high-frequency data (up to 250Hz) without impacting your design's weight or balance. It's the perfect high-performance, drop-in solution for UAV altitude hold, robot anti-drop functionality, and reliable obstacle avoidance.

Feather-light & Fingernail-Sized

• Weighing a mere 1.35g and with dimensions of just 21x15x7.87mm, it adds powerful sensing without impacting your drone's flight time or robot's agility.

Exceptional Outdoor Performance

• Engineered with 100Klux ambient light resistance, it provides stable and accurate measurements outdoors, even in bright sunlight where other sensors fail.

Long-Range & High-Frequency Sensing

• Measures distances up to 20 meters with a configurable frame rate up to 250Hz, enabling real-time navigation and rapid obstacle detection.

Flexible I2C & UART Interfaces

• Choose the best communication protocol for project. Easily integrate with virtually any microcontroller, from Arduino and ESP32 to Raspberry Pi.

Fully Integrated & Ready-to-Use

• With a built-in power module and temperature compensation, this sensor works reliably out of the box on a simple 3.3V supply, saving development time.

Class 1 Eye-Safe Laser

• The 905nm VCSEL light source is certified Class 1, ensuring safety for development, demonstration, and end-user applications.

Specifications:

Performance Parameter

• Measurement Range: 0.2m – 20m (@90% reflectivity, 0Klux)
•  0.2m – 15m (@90% reflectivity, 100Klux)
• 0.2m – 9m (@10% reflectivity, 100Klux)
• Accuracy: ±6cm (@0.2–6m); 1% (@≥6m)
• Precision (Repeatability): 2cm (0.2–6m)
• Distance Resolution: 1cm
• Frame Rate: 0 / 20 / 50 / 100 (default) / 250Hz
• Ambient Light Resistance: 100 Klux
• Light Source / Wavelength: VCSEL / 905nm
• Field of View (FoV): ＜2°
• Laser Safety Class: Class 1 Eye-safe [EN60825]

Mechanical & Electrical

• Supply Voltage: DC 3.3V (±9%)
• Average Power Consumption: ≤0.43W
• Peak Current: ＜130mA @ 3.3V
• Communication Interface: I2C / UART
• Communication Level: LVTTL (3.3V)
• Operating Temperature: -20℃ to +60℃
• Dimensions: 21 × 15 × 7.87mm
• Hardware Interface: 0.8mm 6-pin Connector (Model: WF08006-01207)

Applications:

• UAV Altitude Hold & Terrain Following
• Autonomous Drone Assisted Landing Systems
• Robot Anti-Drop & Edge Detection
• High-Speed Obstacle Avoidance for AGVs
• Smart Device Presence Detection & Triggering
• Industrial Inventory Management (e.g., silo level sensing)
• Interactive Art Installations

Documentations:

• Product wiki
• User Manual

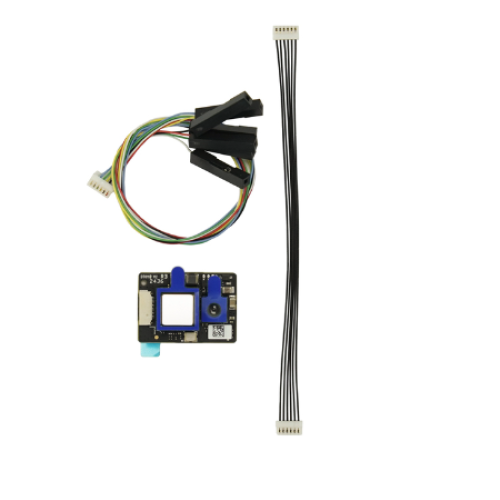

Package Includes:

• 1 x TFS20-L ToF Single-Point Ranging LiDAR Sensor
• 1 x 0.8mm to 2.54mm Dupont Connector Cable (20cm)
• 1 x 0.8mm to 0.8mm Connector Cable (8cm)
