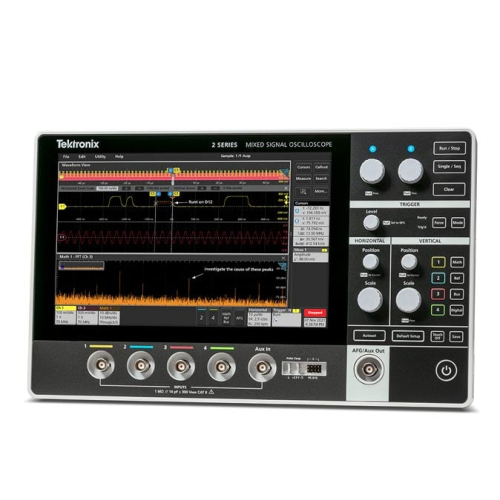

The MSO24-EDU, 70 MHz – 200 MHz oscilloscope bundle includes licensing for 4 analog and 16 digital channels, 50 MHz AFG, 4-bit pattern generator, bode plots and a 5-year Total Protection warranty.

Education features:

• Designed with new users and hybrid learning environments in mind, the 2 Series MSO is the perfect instrument for teaching the next generation of engineers.
• Menus with graphical images and explanatory text for quick feature overviews
• Integrated help system promotes self learning/discovery
• Software enabled for remote teaching, sharing, and learning
• Ability to independently disable autoset, cursors, and measurements.
• The EDU models are priced exclusively for educational institutions. They include serial communication analysis, arbitrary function generator, digital pattern generator, FRA (Bode plot) capabilities, and an extended 5-year Total Protection warranty.

Specifications:

• Analog Bandwidth: 70 MHz - 200 MHz
• Analog Channels: 4
• Digital Channels: 16
• Sample Rate: Up to 2.5 GS/s
• Record Length: 10 M
• Model Number: MSO24-EDU

Documentations:

• Datasheet
• Product Manual

Package Includes:

• 1 x Tektronix MSO24-EDU Oscilloscope Bundle: 70 MHz - 200 MHz, 4 Analog and 16 Digital Channels
