Built on NVIDIA Jetson Orin, the ZED Box Mini delivers high performance in a small form factor. Its flexible I/O and GMSL2 support make it perfect for large-scale deployments.

Specifications:

• Aluminum case passively cooled
• Dimensions: 152.8 × 103.8 × 41.5 mm (L×W×H) / 6.02 × 4.09 × 1.63 in
• Mounting options: 92 × 45mm mounting holes
• Weight: 600 g (1.32lb)
• Power: DC-IN 10.5V to 13.5V — 60W max
• Screwable Terminal block connector TBP01P1W-508-02GR
• SSD 256GB mounted on M.2 Key-M 2242 socket
• AI Module
• NVIDIA® Jetson™ Orin Nano 4GB module
• Ai Performance: 20 TOPS
• NVIDIA® Jetson™ Orin Nano 8GB module
• Ai Performance: 40 TOPS
• NVIDIA® Jetson™ Orin NX 8GB module
• Ai Performance: 70 TOPS
• NVIDIA® Jetson™ Orin NX 16GB module
• Ai Performance: 100 TOPS
• Supplied with Jetpack version JP6.2 L4T36.4. 'Super' mode unavailable at this time.
• WiFi Option
• WiFi 6 connectivity with 1x Intel AX210 Module mounted on M.2 Key-E 2230 socket and with 2x 2.4/5GHz WiFi antennas

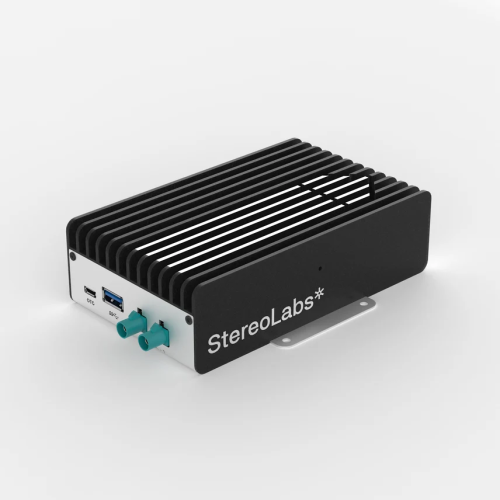

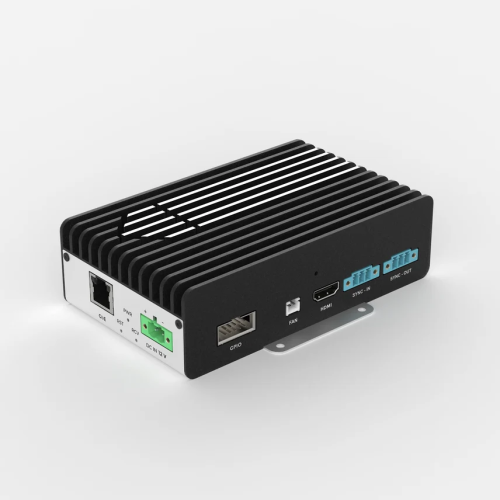

• I/O interfaces
• 2x GMSL2 FAKRA-Z connectors*
• 1x USB3.0 Type-A
• 1x 10/100/1000 Base-T Ethernet RJ45
• 1x HDMI 1.4
• 1x Micro USB2.0 Type-B for system flashing & OTG
• 1x GMSL2 camera synchronization trigger input
• 1x GMSL2 cameras synchronization trigger output

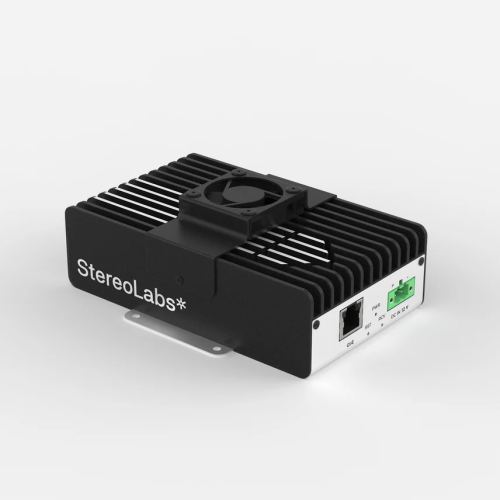

• 1x 12V fan entry
• Miscellaneous connector includes: 1x CAN, 1x UART, 2x GPIOs, 1x 5V, 1x 3.3V, 2x GND

*The ZED Box Mini is limited to only 1x ZED X One 4k input,

2x inputs are compatible with all other camera models.

**The ZED Box Mini Orin Nano 4GB/8GB does not support video streaming (encoding) yet.

Documentation:

• Datasheet
• SDK
• Drivers
• Documentation
• User Manual

Package Includes:

• 1 x ZED Box Mini
• 1 x Power Supply
• 2 x Sync Connectors (No cables)
• 1 x Micro-USB to USB cable
• 2 x 2.4/5GHz WiFi antennas (if WiFi is selected)
