High-Performance AI Edge Computer for Robotics. Run advanced perception, deep learning, and spatial analytics with NVIDIA Jetson Orin acceleration.

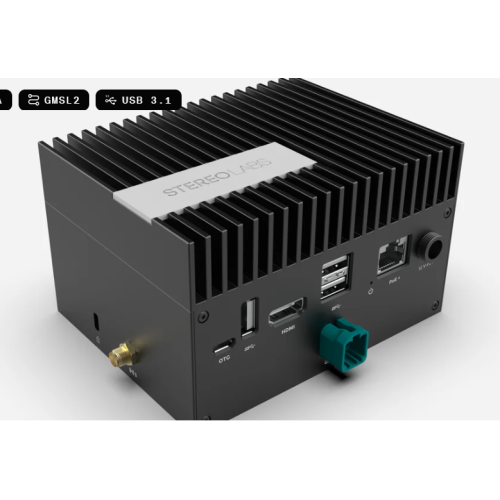

The ZED Box Orin is an industrial-grade embedded AI computer engineered for real-time 3D perception and machine learning workloads.

Key Features:

• Powered by NVIDIA Jetson Orin NX nano and Orin NX for up to 100 TOPS AI compute.
• Quad GMSL2 camera interfaces for seamless multi-camera stereo and monocular vision integration.
• Fanless design for reliable operation in challenging environments.
• Wide range of I/O including Ethernet, USB 3.2 and HDMI.
• Pre-integrated with the ZED SDK for spatial mapping, object detection, and AI analytics.
• Ideal for autonomous robots, smart machines, and edge AI systems requiring powerful GPU acceleration and robust connectivity.

Specifications:

• 4x GMSL2 camera inputs*
• 3x USB 3.1 camera inputs
• Aluminium case passively cooled
• WiFi 6 connectivity
• Power: PoE+ (25.5W) or DC-IN 5A 12-19V
• Mounting options: 92x45mm mounting holes, wall (brackets provided), DIN-rail mounting
• Weight: 0.7 kg (1.5lb)
• Dimensions: 118 x 92 x 71 mm (LxWxH) / 4.6 x 3.6 x 2.7 inches

AI Module

• NVIDIA Jetson Orin Nano 8GB module
• Ai Performance: 40 TOPS
• NVIDIA Jetson Orin NX 8GB module
• Ai Performance: 70 TOPS
• NVIDIA Jetson Orin NX 16GB module
• Ai Performance: 100 TOPS

Supplied with Jetpack 6.2. Not compliant with 'Super' mode.

Storage Options

• SSD 256GB, 1TB or 2TB

GPS Option

• GPS RTK U-blox ZED-F9P
• Supports GPS, GLONASS, Galileo, and BeiDou

The ZED Box is limited to only 2x ZED X One 4k input, 4x inputs are compatible with all other camera models.

Documentations:

• Datasheet
• SDK
• Drivers
• Documentation

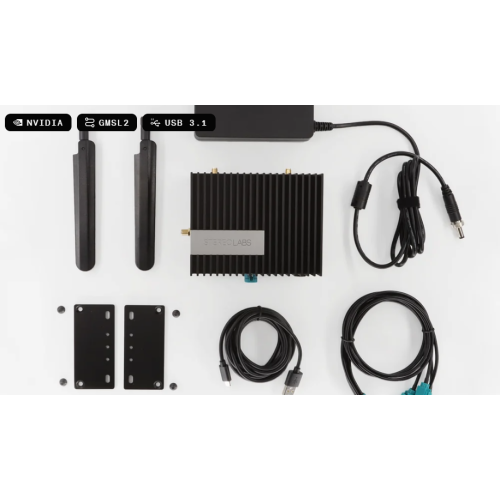

Package Includes:

• 1x ZED Box with selected optional parts
• 1x Power supply
• 2x Mounting brackets
• 1x 1-to-4 GMSL2 cable
• 1x Mini-USB to USB cable
• 2x 2.4/5GHz WiFi antennas
