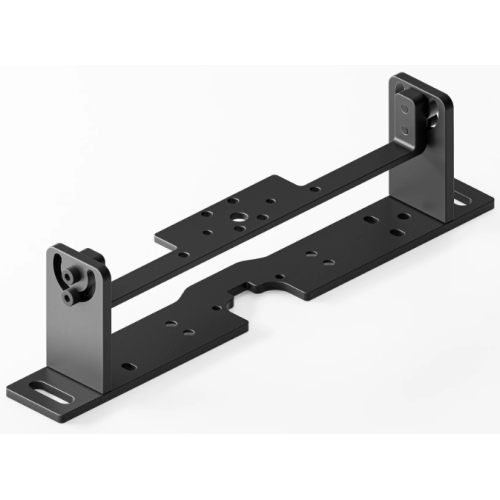

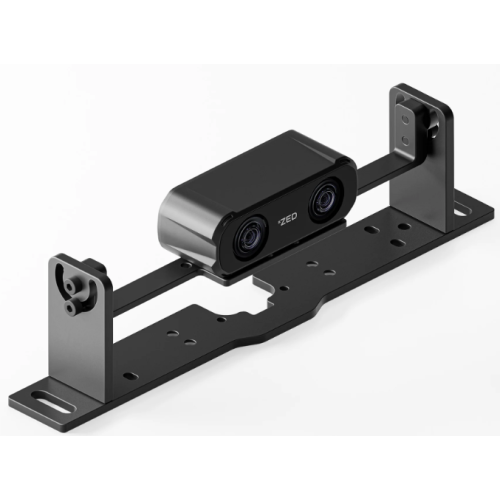

A low-profile, adjustable camera mount for ZED cameras, engineered around a rigid machined aluminum bar for maximum stability and easy installation.

Its flexible tilt adjustment lets you quickly optimize the camera angle for your application and securely lock it in place.

The mount provides a stable and secure camera position that helps reduce setup variability, supporting reliable depth sensing, stable calibration, and high-quality data collection across multiple systems.

The modular design features detachable base and support plates that can be used independently, giving you the flexibility to match virtually any installation.

Create a sleek low-profile mount or a raised, reconfigurable setup, and adapt the geometry to walls, ceilings, enclosures, or vehicle rigs—without additional hardware. Simply adjust, lock, and deploy with confidence.

Product Features

• Robust aluminum mount bar.
• Compatible with a wide range of camera models and baselines*.
• Full tilt angle adjustment for optimal positioning
• Mount on any surface using M6 screws.
• 0.16"/4mm thick aluminum bar.

Mounting options

• Tiltable mount — flip the assembly for ceiling, overhead, or inverted setups.
• Bottom on Support Plate — camera seated upright for standard forward-facing capture.
• Back on Support Plate — camera mounted flush against the plate for a space-saving profile, ideal for wall mounting.
• Back Reverse on Support Plate — back-mounted in reversed orientation when cabling or field of view needs to face the opposite direction.

Dimensions:

• 250 x 38 x 62 mm (9.84 × 1.50 × 2.44 inch)Compatible with the full ZED camera lineup, including ZED 2i, ZED X, ZED X Mini, ZED X Nano stereo cameras, and ZED X One GS, ZED X One 4K, ZED X One S monocular cameras.

Package Includes:

• 1x Camera mount
• 4x Screws M4 x 12mm
• 2x Screws M3 x 8mm
• 6x Screws M2.5 x 10mm
