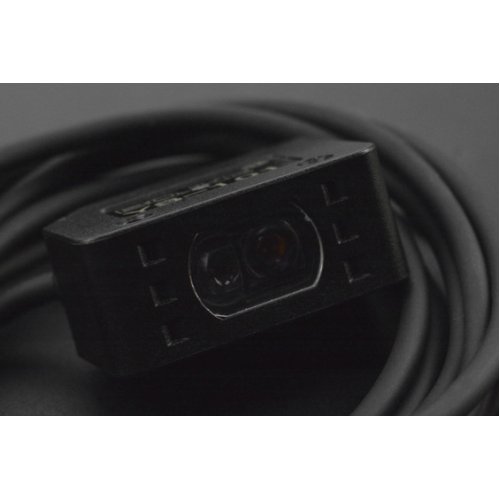

This cost-effective smart color mark photoelectric sensor with 8~16 mm detection range employs 4-elements LED light source.

Operating at 12~24V, the color mark sensor offers 3 detection modes, and 4 output modes. It saves color data with one click, which is pretty easy to use.

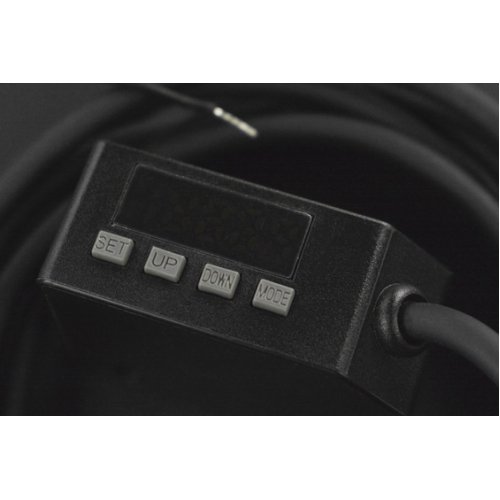

The sensor provides stable detection of a variety of colors and its 4-digit LED screen displays the real-time output color data. Besides, the color photoelectric sensor comes with 4 buttons for function settings and has protection mechanisms like short-circuit protection, overload protection and polarity protection.

• Onboard buttons for function settings, easy to use
• Strong light resistance, stable performance
• 12-24V wide voltage range, multiple protection mechanisms

• Light Source: Four-element LED
• Detection Distance: 8~16mm
• Power Supply: DC 12-24V
• Response Time:
• Mode of MARK: 50um;
• Mode of C/C1: 130um

• Output Selection: LIGHT-ON/DARK-ON [switching select]

• Detection Method:
• Detection of light intensity MARK
• Detection of automatic color matching C

• Detection of color and brightness C1

• Delay Function:

• Turn off delay timer/turn on delay timer/one-shot timer/turn on delay one-shot timer, optionally.
• Selectable timer time: 1ms to 9999ms

• Operating Ambient Luminance:

• Incandescent Lamp: Max 20000Lux
• Sunlight: Max 30000Lux

• Power Consumption:

• Standard mode: Max 300mW at 24V
• Operating Temperature: -10~55°C
• Output Type: NPN

Documents:

• Product wiki

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

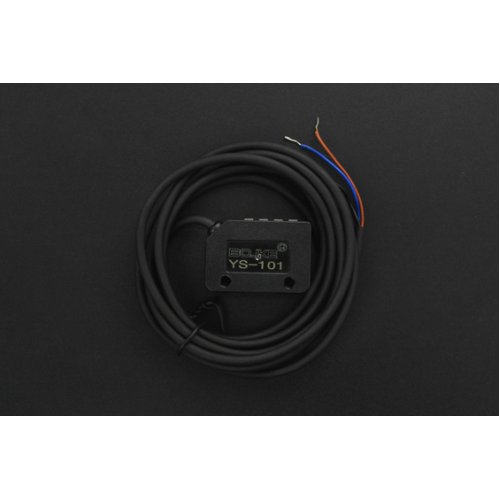

• 1 x Smart Color Mark Photoelectric Sensor
