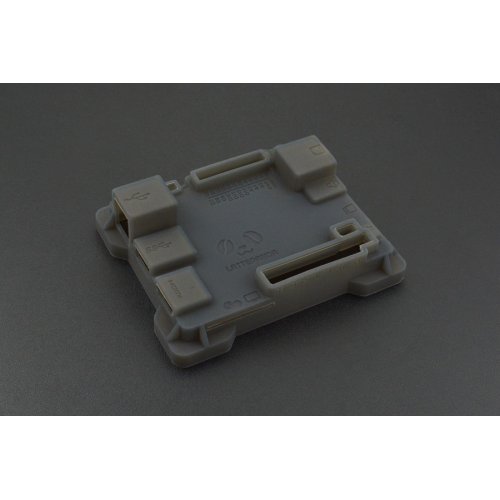

This silicone case is specifically designed for LattePanda V1 development board (not compatible with LattePanda Alpha & Delta). Not only using non-toxic and non-smell silicone material (food grade), but also provide a full range of protection structure to avoid damage caused by accidental drop.

It is worth mentioning that the silicone case has some other functions. All interface for external connection has been reserved, and each interface has a clear mark for the function. The hollow-carved design makes it easy to mount the heatsink cooling fan. In addition, this silicone case has static electricity isolation feature and good cold and heat resistance, it can tolerate -40~250℃ working temperature.

Features:

• Compatible with LattePanda V1, not compatible with LattePanda Alpha & Delta
• Non-toxic and non-smell silicone material (food grade)
• Cold & heat fatigue resisting
• Static electricity isolation

Specifications:

• Material: Silicone
• Heat resistance: -40~250℃
• Top enclosure dimensions: 101.2 x 83.2 x 28.2 mm/ 3.98 x 3.28 x 1.11 inches
• Lower base dimensions: 97 x 79 x 17.1 mm/ 3.82 x 3.11 x 0.67 inches
• Assembly dimensions: 101.2 x 83.2 x 37.0 mm/ 3.98 x 3.28 x 1.46 inches
• Net weight (without LattePanda): 60g

Note: The Lattepanda development board is not included in the kit.

Documents:

• Silicone Case Dimension

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

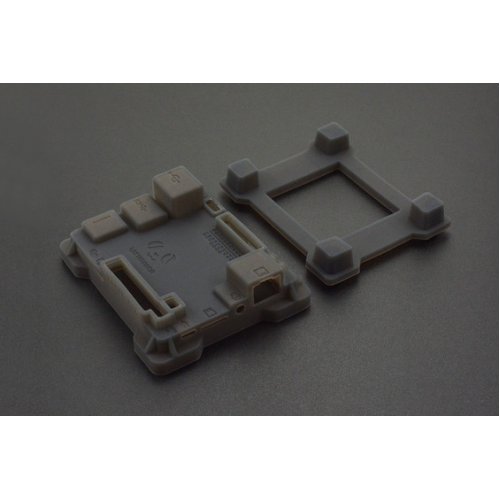

Package Includes:

• 1 x Silicone Case (Top enclosure)
• 1 x Silicone Case (Lower base)
